Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | Changzhou |
| Brand Name: | HT |
| Certification: | CE, ISO9001 |
| Model Number: | VE |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Plywood |
| Delivery Time: | 7～15 days |
| Payment Terms: | T/T |
| Self-Locking: | Yes | Slewing Drive Gear Ratio: | Up To 150:1 |
|---|---|---|---|
| Installation Site: | Solar Power Plant, Roof, Farm… | Structure: | Worm And Gear |
| Protection: | IP66, Enclosed | Limited Warranty: | 3~10 Years |
| Slew Drive Deceleration: | Two-stage | Power Source: | Planetary Gearbox |
| High Light: | IP66 Worm Gear Planetary Gearbox,Worm Gear Slewing Drive,Solar Slew Drive china |
||
One of the many features of the Solar Slew Drive is its Double Enveloping Worm. This feature is essential because it ensures that the drive is self-locking, meaning that the solar panel will stay in place even when there is no power supplied to the system. This feature is important because it helps to protect the solar panels from being damaged during high winds or other unpredictable weather conditions.

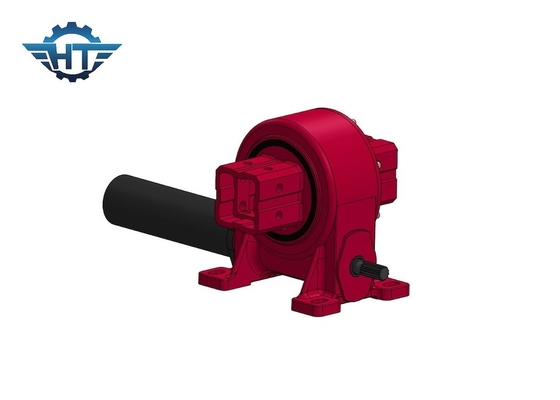

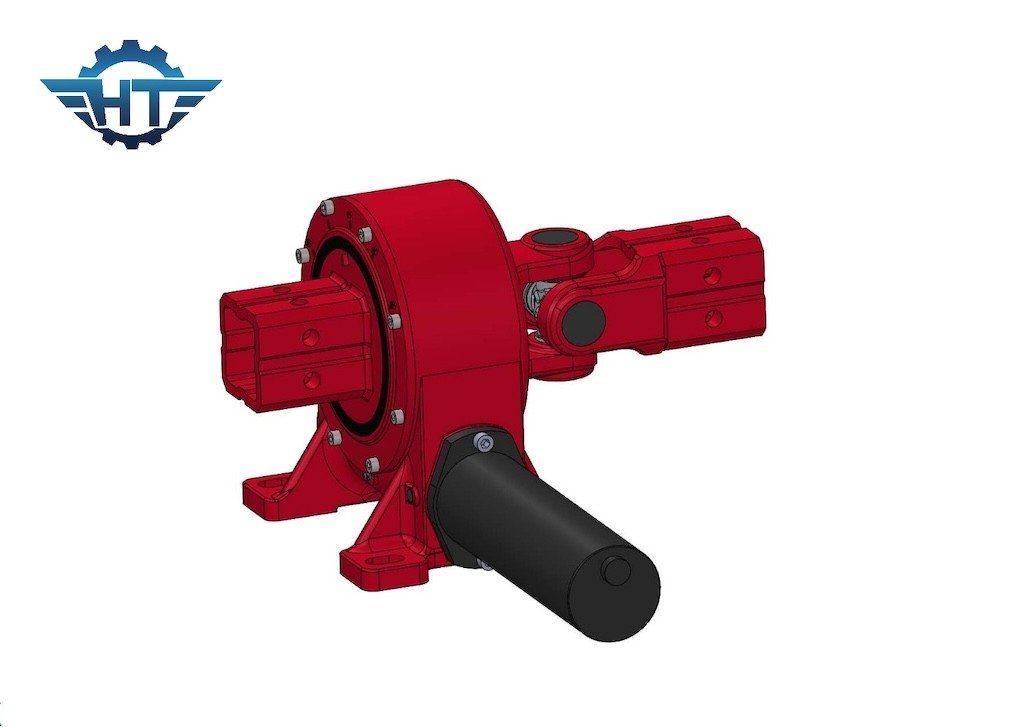

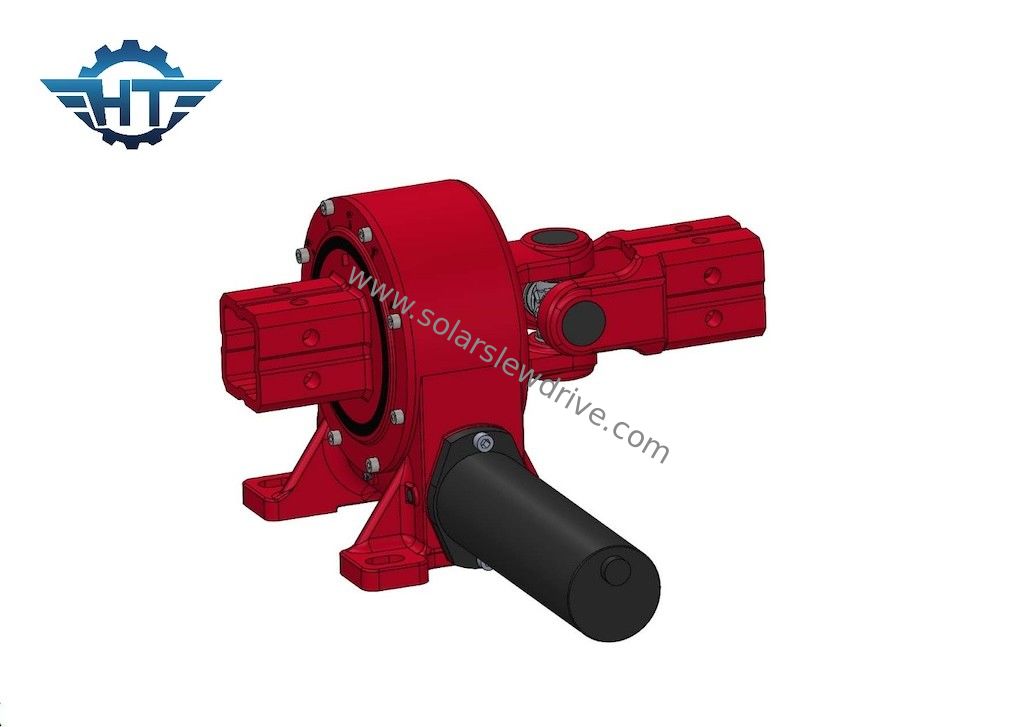

The VE7 High Strength Solar Tracker Slewing Drive is one of the most popular models in the Solar Slew Drive product line. This model has been designed specifically for use in solar panel tracking systems and features a helical tooth design. The helical tooth design ensures that the drive is able to handle heavy loads and provides a smooth and efficient rotation of the solar panels.
The Solar Slew Drive comes with a limited warranty of 3-10 years, depending on the model and manufacturer. This warranty provides the customer with peace of mind knowing that they are purchasing a high-quality product that is backed by the manufacturer.
Overall, the Solar Slew Drive is an essential component for solar panel tracking systems. Its self-locking feature and double enveloping worm ensure that the solar panels are protected from damage during unpredictable weather conditions, while its helical tooth design provides a smooth and efficient rotation of the solar panels. With a limited warranty of 3-10 years, customers can trust that they are purchasing a high-quality and reliable product.
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
| Technical Parameter | Description |
|---|---|
| Protection | IP66, Enclosed |
| Operating Temperature | -40°C To +120°C |
| Brake | Not Needed |
| Grease Type | Mobil EP-2 |
| Mounting Options | Horizontal, Vertical Or Custom |
| Power Source | Planetary Gearbox |
| Slewing Drive Gear Ratio | Up To 150:1 |
| Limited Warranty | 3~10 Years |
| Slew Drive Deceleration | Two-stage |
| Slew Drive Material | QT700 |
The structure of the Solar Slew Drive is worm and gear, and the worm feature is double enveloping, providing high accuracy and stability. The Slew Drive material is QT700, which is known for its toughness and resistance to wear and tear. The product comes with a limited warranty of 3 to 10 years, depending on the model.
The Solar Slew Drive is suitable for installation in solar power plants, rooftops, farms, and other locations. It is designed to provide rotational movement in solar tracking systems and is compatible with 2 portrait solar tracking systems. The VE7 high strength solar tracker slewing drive is a popular model that is widely used in the industry.
With its high quality and reliability, the HT Solar Slew Drive is an ideal choice for those who want to improve the efficiency and performance of their solar tracking systems. Order now and experience the benefits of this amazing product!
The Solar Slew Drive is designed to provide high precision and accuracy for solar tracking systems. It is engineered to withstand harsh weather conditions and reduce maintenance requirements. Our technical support team is available to assist with any product inquiries or issues. Our services include:
Our goal is to provide our customers with the best possible experience with our products and services. Please do not hesitate to contact us for any assistance you may need.
