Type: | VE7 | Material: | 42CrMo Or 50Mn |
---|---|---|---|
Warranty: | 5~10 Years | Size: | 7 Inches |
Type Of Tooth: | Helical Tooth | Motor: | 24VDC Motor |
Color: | Customer Required | Application: | 2 Portrait PV Solar Tracking System |
Highlight: | 24VDC Gear Motor Solar Slew Drive,Helical tooth Solar Slew Drive,VE7 PV Tracking Solar Slew Drive |

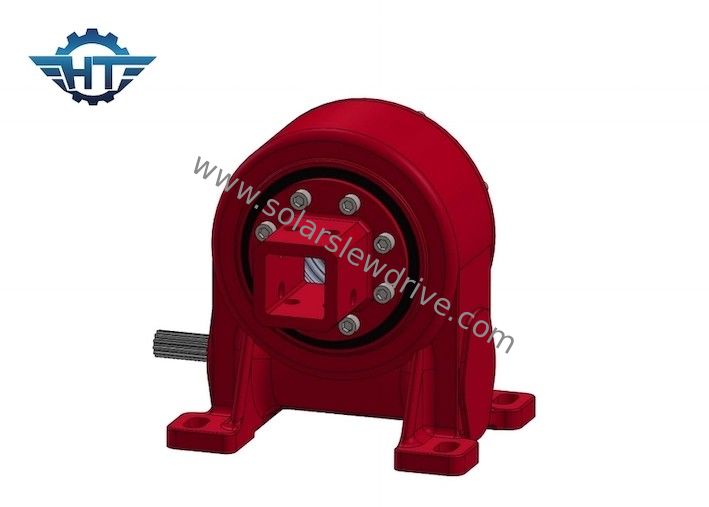

VE7 Solar Slew Drive With 24VDC Gear Motor For 2 Portraits PV Solar Tracking System
Description
Hangtuo’s slewing drives employ high precision technology that provides a large ratio in a second stage of gearing. The worms and gears are assembled into a low profile, self-retaining, and ready-to-install housing. We have the capability to provide custom solutions for specific applications.
Technical Data
Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Slewing Drive Features
These highly-adaptable products also feature strong shock resistance, long life performance, smooth rotation, bearing protection, and sealed drive options.
Slewing drives/reducers are being chosen by customer from home and aboard for PV/CPV/CSP solar thermal tracking systems due to the combination of slewing ring with the hourglass worm shaft, which provides more tooth contact, increased drive torque and smoother rotation. There are different sizes available from 3 inch to 25 inch with more than 60 models to meet both regular and precise tracking requirements in PV, CPV, CSP and solar thermal power tracking fields.
Worm Gear Slewing Drive Applications
Our products include slewing drives and related components, which are mainly applied in single or dual axis solar tracking systems, construction vehicles, port machinery, modular vehicles and small wind power systems.
