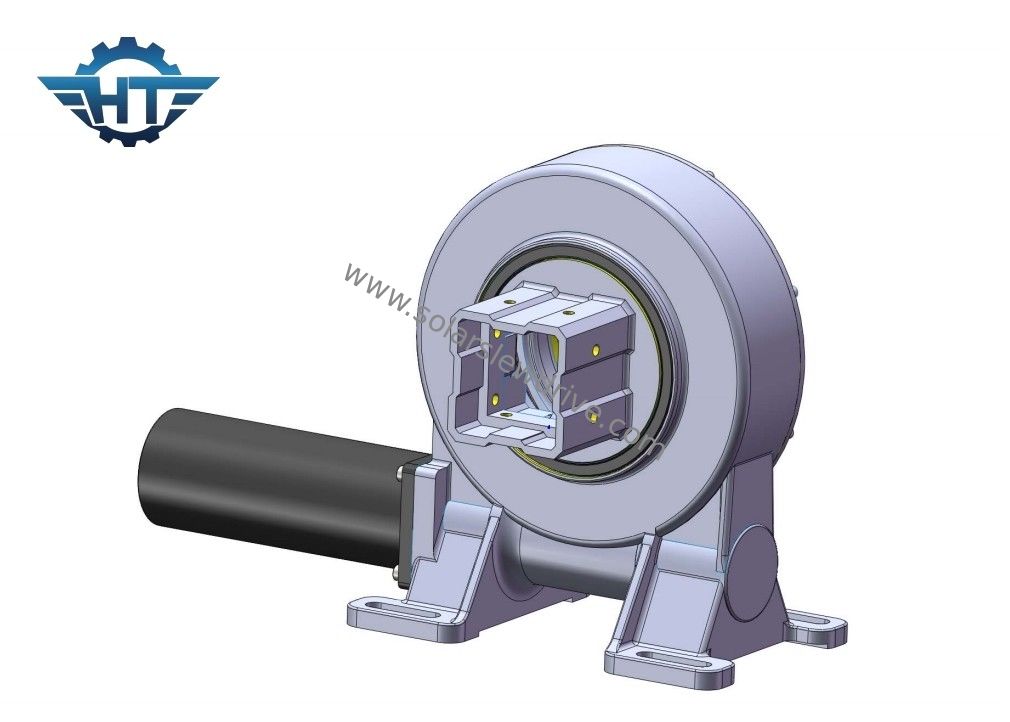

Ve7 Worm Gear Slew Drive For Horizontal Solar Tracking System

Ve7 Worm Gear Slew Drive For Horizontal Solar Tracking System

  • Ve7 Worm Gear Slew Drive For Horizontal Solar Tracking System
  • Ve7 Worm Gear Slew Drive For Horizontal Solar Tracking System
Ve7 Worm Gear Slew Drive For Horizontal Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Worm Gear Material: 50Mn, 42CrMo Efficiency: 40%
Accuracy: 0.15° Life Time: 30 Years
Noise Level: ≤65dB Operating Temperature: -20℃~+80℃
Product Name: Horizontal Solar Tracking System Voltage Rating: 24V
High Light:

ve7 worm gear slew drive


high efficiency worm gear slew drive


ve7 solar tracker slew drive

VE7 Worm Gear Slew Drive for Horizontal Solar Tracking System



VE7 Slew Drive Gearbox Description


A slewing gearbox, also known as a slew drive or slewing ring, is a mechanical device used to provide rotational movement or slewing motion to heavy machinery and equipment. It is commonly employed in applications that require controlled rotation, such as cranes, excavators, wind turbines, and solar trackers.

The slewing gearbox consists of several key components:

Outer Ring: The outer ring serves as the stationary part of the gearbox and provides a stable mounting surface. It is typically circular in shape and incorporates a series of gear teeth or raceways on its inner circumference.

Inner Ring: The inner ring is connected to the equipment or machinery that requires slewing motion. It is mounted on the outer ring and is designed to rotate relative to it. The inner ring also features gear teeth or raceways on its outer circumference.

Gear Mechanism: The gear mechanism enables the rotation of the inner ring relative to the outer ring. It typically consists of a set of gears or rollers that engage with the teeth or raceways on both the inner and outer rings. By transmitting torque and reducing friction, the gear mechanism allows smooth and controlled slewing motion.

Drive System: The drive system is responsible for providing power to the slewing gearbox. It can be powered by various means, including electric motors, hydraulic systems, or gear motors. The drive system transfers rotational energy to the gear mechanism, initiating the slewing motion.

Bearings: Slewing gearboxes incorporate bearings to support the load and minimize friction during rotation. These bearings are designed to withstand high axial, radial, and moment loads, ensuring the gearbox's stability and durability.

Sealing and Lubrication: To protect the internal components from contaminants and maintain smooth operation, slewing gearboxes are equipped with sealing systems. These seals prevent dust, moisture, and other particles from entering the gearbox. Lubrication is also essential to reduce friction and wear between moving parts, prolonging the lifespan of the gearbox.


Technical Data of Vertical Single Series Slewing Drives


Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Slewing gearboxes are engineered to provide precise and controlled slewing motion, allowing heavy equipment to rotate horizontally or vertically. They are designed to withstand heavy loads, harsh environmental conditions, and continuous operation, making them crucial components in various industrial and construction applications.


Glossary of Key Paramaters


Tilting Moment Torque: This torque is the gravity load multiplied by distance between the position of load and the center of slewing bearing. If the actual torque is greater than the rated tilting moment torque, slewing drive will be overturned.

Radial load: The load vertical to the axis of slewing bearing

Axial load: The load parallel to the axis of slewing bearing

Holding torque: It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque, it is also seen as broken torque.

Self-locking: Only when there is load, the slewing drive is not able to reverse rotate and thus called self-locking.
