Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | CHINA |
| Brand Name: | HANGTUO |
| Certification: | CE, ISO9001 |
| Model Number: | VE5" |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 145~226 USD/PC |
| Packaging Details: | PLYWOOD BOX |
| Delivery Time: | 15~30 DAYS |
| Supply Ability: | 12000 PCS/YEAR |
| Gear Type: | Horizontal Self Locking Gear | Usage: | Tilted Solar Tracking System |
|---|---|---|---|
| Power Supply: | 24V Or 48V DC | Operating Temperature: | -30℃~+80℃ |
| Rotate: | ±65° Rotation | Grease Injection: | Internal 5 Years |
| Encoder: | Optional | Type Of Tooth: | Helical Tooth |
| High Light: | Single Axis slew drive gearbox,PV Mounting System slew drive gearbox,Electrical Motor slew drive gearbox |
||

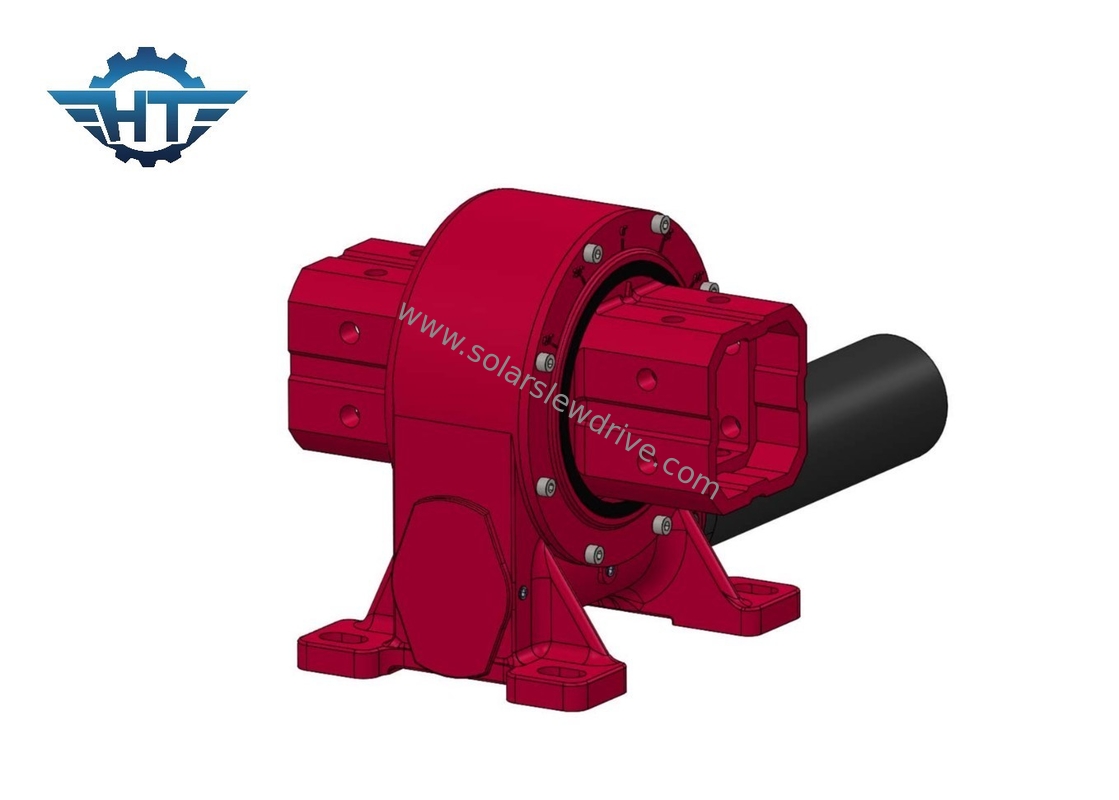

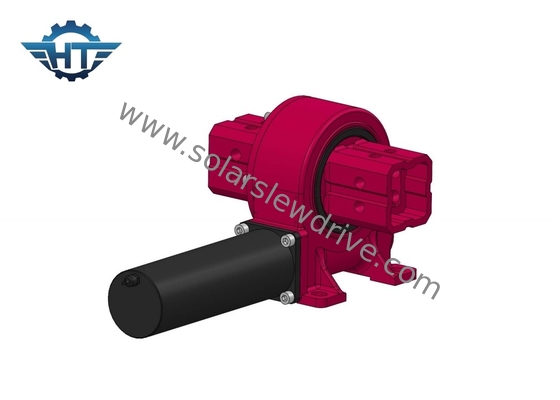

Single Axis Slew Drive Gearbox With Electrical Motor For PV Mounting Tracking System
Slew Drive Gearbox Description
A slewing drive gearbox for a solar tracking system is a critical component that enables the solar panels to follow the sun's path throughout the day. Here's a detailed description of its features and functionalities. It is designed to provide high torque output to rotate the solar panels smoothly. This ensures that the panels can effectively track the sun's movement, maximizing energy capture throughout the day.
We also have slewing drive gearboxes for solar tracking systems support dual-axis movement, allowing the solar panels to track both the daily east-west movement of the sun (azimuth tracking) and the seasonal north-south movement (elevation tracking). This maximizes energy capture by optimizing the angle of incidence between the sun's rays and the solar panels.
Vertical Slew Drive Performance Parameters
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
Slewing drive gearboxes are available in various sizes, gear ratios, and mounting configurations to accommodate different solar panel sizes and system requirements. Customization options may include different motor types, encoders, and protection features tailored to specific applications. Its high torque output, precision tracking capabilities, weather resistance, and compatibility with control systems make it an indispensable component in solar power generation systems.
