Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9” |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Drive Type: | Slew Drive | Self-Locking: | Yes |
|---|---|---|---|
| Protection: | IP66 | Surface Coating: | C4/C5 |
| Worm Gear Material: | 50Mn, 42CrMo | Motor: | 24V DC |
| Certificates: | CE, ISO9001 | Precision: | ≤ 0.15° |
| High Light: | Absolute Reliability Slewing Drive,High Precision Slewing Drive,VE Series slew drive solar |
||

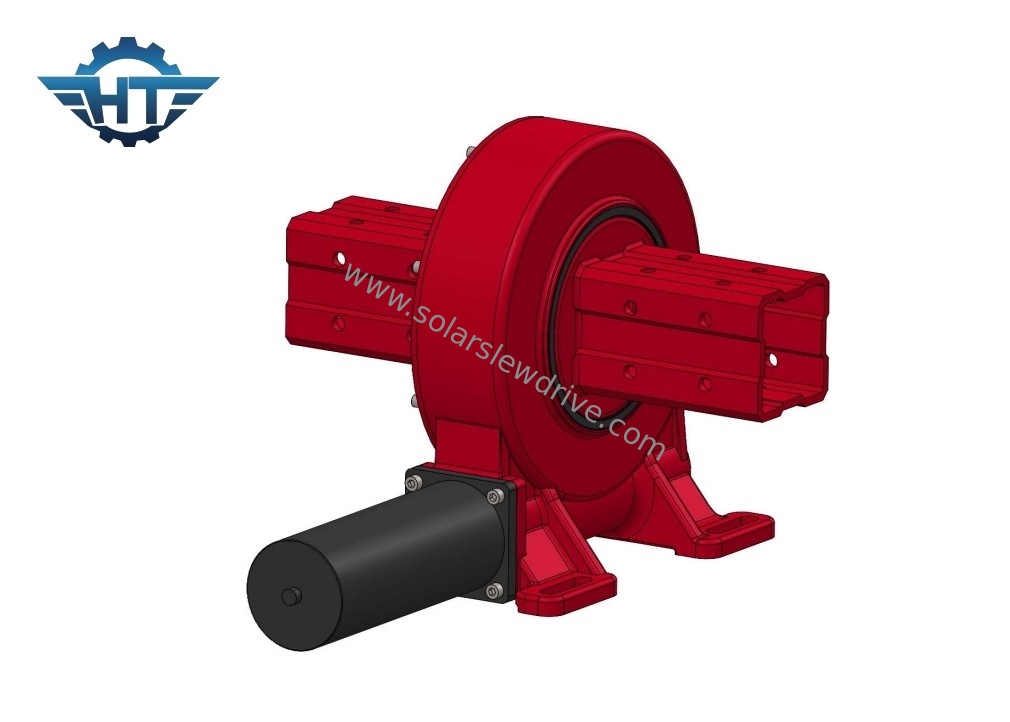

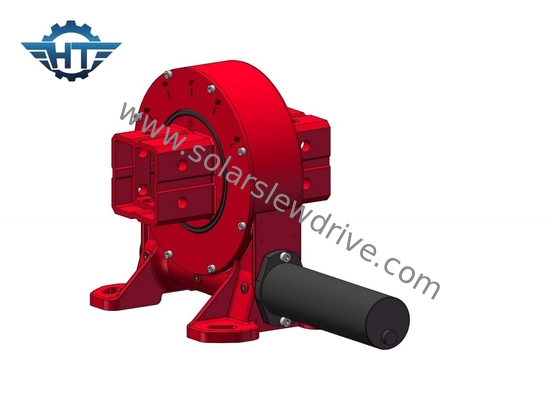

VE Series Slewing Drive For High Precision And Absolute Reliability In Solar Tracking
VE Series Slewing Drive Description
Low Maintenance Requirements: Designed for minimal maintenance, our solar tracker slewing drive reduces downtime and maintenance costs associated with solar tracking systems. Its rugged construction and efficient gearing minimize wear and tear, providing reliable operation with minimal upkeep.
Versatile Compatibility: Compatible with various solar tracking system configurations, our worm gear slewing drive offers versatility in design and installation. Whether used in single-axis or dual-axis solar tracking systems, it provides the flexibility needed to meet diverse project requirements.
Parameters of VE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Applications
Solar tracking slewing drives are important in maximizing the efficiency and effectiveness of solar energy systems in various applications, contributing to renewable energy adoption and sustainability efforts worldwide.
Remote Off-Grid Installations: Off-grid installations in remote locations, such as telecommunications towers, remote monitoring stations, or oil and gas pipelines, can benefit from solar tracker slewing drives to power essential equipment using renewable energy sources.
Water Pumping Systems: Solar tracker slewing drives can be integrated into solar-powered water pumping systems for agricultural irrigation, livestock watering, or community water supply projects. These systems offer a sustainable solution for accessing water in areas with limited access to electricity.
