Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE7" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Gear Ratio: | 57:1 | Tilting Torque: | 5 KNm |
|---|---|---|---|
| Model: | VE7 | Application: | Solar Tracking System |
| Motor: | Electric/hydraulic/servo | Rotating Type: | Horizontally And Vertically |
| Lifespan: | 30 Years | Limited Warranty: | 5~10 Years |
| High Light: | Solar Tracking System Slewing Drive Gearbox,VE7 slew drive gearbox,Vertical Single Axis slew drive gearbox |
||

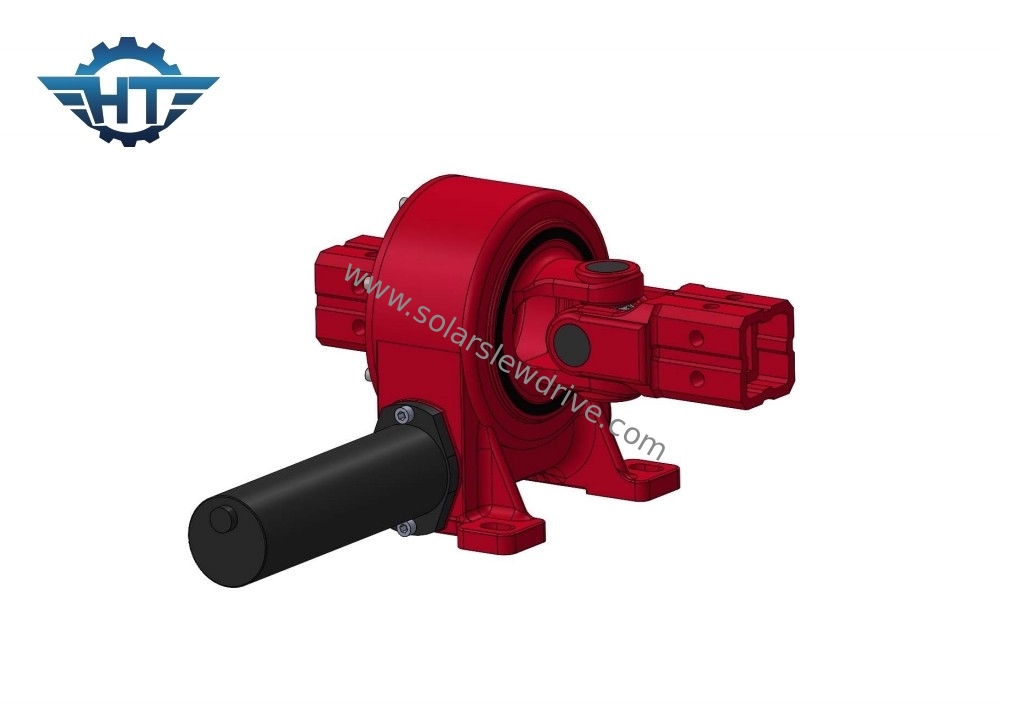

VE7 Vertical Single Axis Solar Tracking Slewing Drive Gearbox For Solar Tracking System
Solar Tracking Slewing Drive Gearbox Description
Precision-engineered slewing drive with worm gear mechanism designed for solar tracking applications, ensuring smooth and accurate movement to optimize solar panel orientation for maximum energy capture.
Our robust and reliable solar tracking slewing drive featuring a worm gear setup, crafted for durability and efficiency in adjusting solar panels to follow the sun's path throughout the day, enhancing solar energy production.
Technical Sheet of VE Slewing Drive
|
Model |
Ratio |
Rated Output Torque(N.m) |
Tilting Torque(N.m) |
Holding Torque(N.m) |
Axial Load(kN) |
Radial Load(kN) |
Efficiency |
Precision(°) |
Self-locking |
Weight(kg) |
|
3" |
31:1 |
600 |
1500 |
1800 |
22 |
15 |
40% |
≤0.1 |
Yes |
12 |
|
5" |
37:1 |
800 |
5000 |
9200 |
16 |
27 |
40% |
≤0.1 |
Yes |
18 |
|
7" |
57:1 |
1750 |
7000 |
13200 |
34 |
58 |
40% |
≤0.1 |
Yes |
32 |
|
8" |
51:1 |
2250 |
11200 |
20400 |
50 |
80 |
40% |
≤0.1 |
Yes |
28 |
|
9" |
61:1 |
2250 |
16000 |
30800 |
60 |
130 |
40% |
≤0.1 |
Yes |
52 |
|
12" |
78:1 |
4300 |
25000 |
40560 |
77 |
190 |
40% |
≤0.1 |
Yes |
65 |
|
14" |
85:1 |
5600 |
48000 |
44200 |
110 |
230 |
40% |
≤0.1 |
Yes |
88 |
|
17" |
102:1 |
6750 |
67000 |
53040 |
142 |
390 |
40% |
≤0.1 |
Yes |
135 |
|
21" |
125:1 |
16000 |
89000 |
65000 |
337 |
640 |
40% |
≤0.1 |
Yes |
192 |
|
25" |
150:1 |
21450 |
112000 |
89000 |
476 |
950 |
40% |
≤0.1 |
Yes |
251 |
Our Packaging & Transport
Packaging and shipping of solar tracking slewing drive gearboxes need to ensure their safe transportation and arrival in optimal condition:
Packaging Materials: High-quality packaging materials such as sturdy cardboard boxes, ply wooden boxes, or custom-designed containers are used to protect the slewing drive gearbox during transportation.
Protection: Each slewing drive gearbox is securely wrapped and cushioned with foam padding or bubble wrap to prevent damage from impacts, vibrations, or rough handling during shipping.
