Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | 9 Inches |
|---|---|---|---|
| Gear Ratio: | 61:1 | Efficiency: | 40% |
| Precise: | ≤ 0.1 | Application: | Concentrated Solar Power System |
| Color: | Standard Silver Gray | Life Cycle: | 30 Years Field Life |
| High Light: | VE9 Vertical Solar Tracker Slew Drive,9 inches Solar Tracker Slew Drive,Concentrated Solar Power Tracker Slew Drive |
||

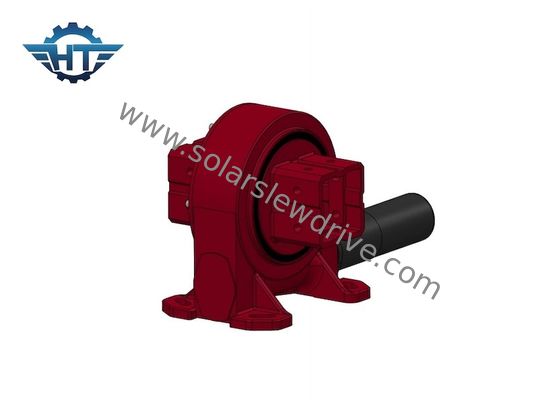

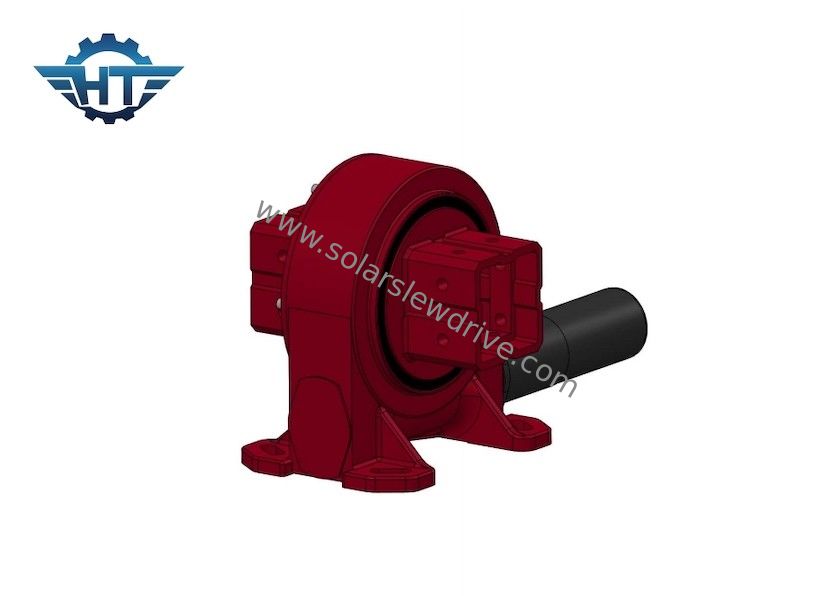

VE9 Vertical Solar Tracker Slew Drive For Concentrated Solar Power System
VE9 Slewing Drive Description
There are mainly three types of CSP stations: tower/Heliostat which using sde slewing drive or se slewing drives; parabolic which using se slewing drives or ve slewing drives; fresnel which using ve slewing drives or se slewing drives.
The slewing drive is essencial part of CSP, concentrated solar power photovoltaic. Concentrated solar photovoltaics and concentrated solar thermal have optics that directly accept sunlight, typically used to orient a mirror and redirect sunlight along a fixed axis towards a stationary receiver. So the system must be angled correctly to collect the heat. All concentrated solar systems must have slewing drive trackers because the systems do not produce energy unless directed correctly toward the sun. Besides, it need high precision in order to make sure the system can orient sun all the time and make full use of the sunlight.
Vertical Slew Drive Performance Parameters
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | a50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
Features
With ease-of-use features and high performance, our slewing drive solar trackers are a simpler, powerful solar solutions to make the system move toward the sun from dawn to dusk to maximize energy production thoughout the day.
