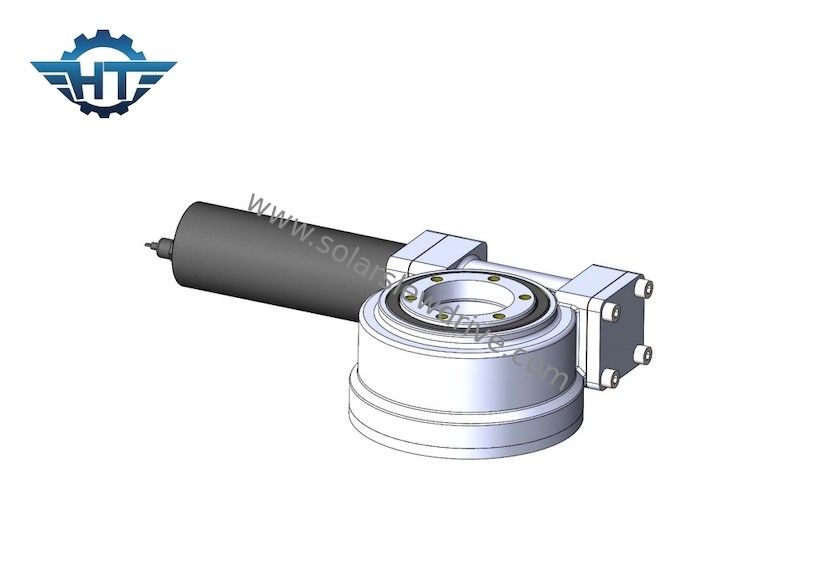

SE12 Enclosed Housing Solar Slewing Drive For Single Axis Tracking System

SE12 Enclosed Housing Solar Slewing Drive For Single Axis Tracking System

  • SE12 Enclosed Housing Solar Slewing Drive For Single Axis Tracking System
  • SE12 Enclosed Housing Solar Slewing Drive For Single Axis Tracking System
SE12 Enclosed Housing Solar Slewing Drive For Single Axis Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE12“
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Self-lock: Yes
Tilting Torque: 54.4 KNm Holding Torque: 40.5 KNm
Application: Single Axis Solar Tracking System Installation Site: Outdoor
Packaging: Plywood Motor: DC Motor
High Light:

Enclosed Housing Solar Slewing Drive

,

SE12 Solar Slewing Drive Single Axis

,

SE12 Solar Tracking System Slewing Drive

SE12 Enclosed Housing Slewing Drive For Single Axis Solar Tracking System



Slewing Drive​ Description



We offer quality enclosed slewing drive specially designed for aerial working platform and construction machinery. Our enclosed slewing drive equipment is also widely used in PV, CPV, STP, CSP solar tracking systems applications.



We adopt trict product quality testing process, conduct overall quality control from raw material to the finished product, each process will be inspected by special-occupied inspectors with detection equipments testing method.



Parameters of SE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Slewing Drive Testings



We can do slewing drive working life testing, the slewing drive rotating on the test tooling with customers' axial load, radial load & tilting moment. Worms, gears, bolts, and assemblies are evaluated on several factors that can impact performance, including strength and integrity, load and speed, torque and vibration, metallurgic and dimensional characteristics, and environmental impacts. Other testings can be conducted according to customers' needs, to ensure that custom specifications are met, and analyze failure and wear.



The life cycle test confirms that any changes to components, materials, or manufacturing process won't negatively impact the bearing and worm's characteristics. slewing drive's working life test are not just theoretical computations, they must be proven in exhaustive testing.
