Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Brand Name: | Hangtuo | Material: | Cast Iron |
|---|---|---|---|
| Axis: | Single Axis | Certificate: | ISO9001, CE |
| Motor: | 12VDC, 24VDC | Maintenance: | Free |
| Color: | As Requested | Self-lock: | Yes |
| High Light: | Small Single Axis Worm Slew Drive,12VDC Small Worm Slew Drive,Panel Mounting Tracking Worm Slew Drive |
||

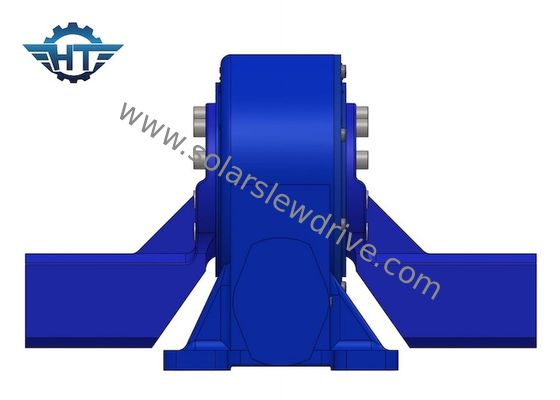

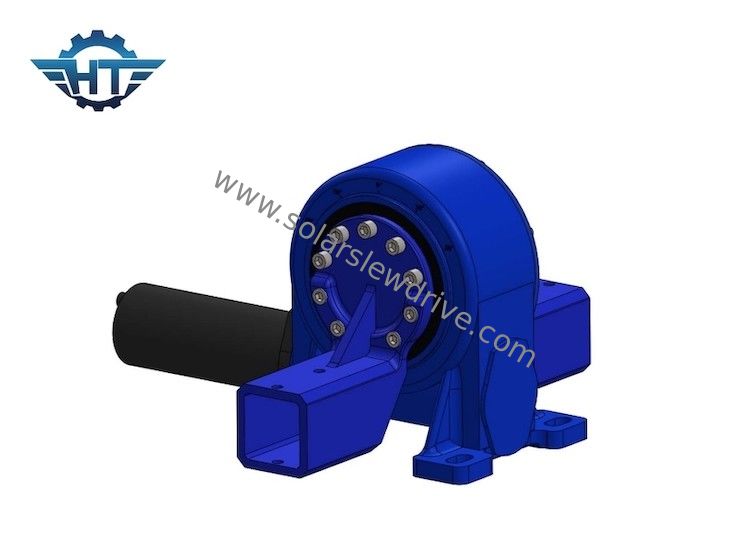

Single Axis Small Worm Slew Drive With IP66 House Solar Panel Mounting Tracking System
Small Worm Slew Drive Description
The rotary drive device is a new type of rotary product, which can bear axial force, radial force and overturning moment at the same time. Compared with traditional slewing products, the slewing drive has the characteristics of simple installation, easy maintenance, and saving installation space to a greater extent. This product can be widely used in construction machinery and new energy fields such as heavy-duty flatbed trucks, container cranes, truck-mounted cranes, aerial work vehicles, and solar power generation systems. Hangtuo's full range of slewing drives are fence type with IP66 protection level. Worm gear drive can realize reverse self-locking.
Technical Data of VE Type
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
How to Make Selection
When selecting a suitable slewing drive, we need information,
1. The scale of the projects. .
2. The load on the slewing drives and its gravity distance
3. The output speed
