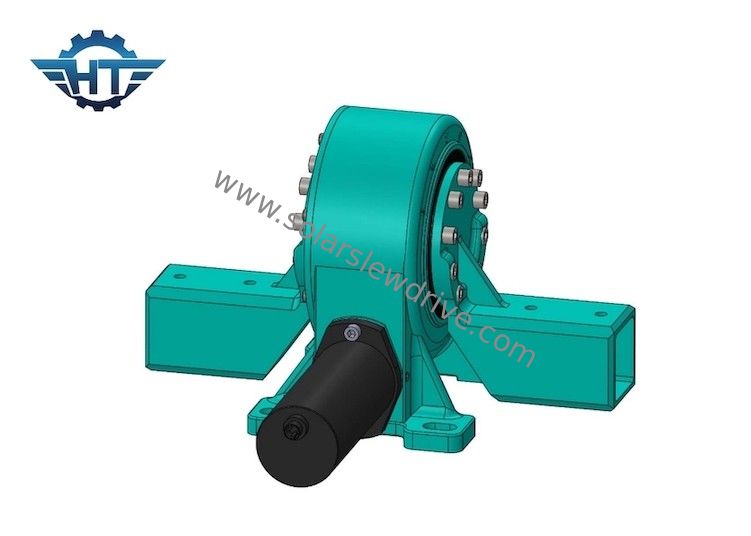

IP66 Sealing Compact Slewing Drive Reducer For Single Axis Tracking System

IP66 Sealing Compact Slewing Drive Reducer For Single Axis Tracking System

  • IP66 Sealing Compact Slewing Drive Reducer For Single Axis Tracking System
  • IP66 Sealing Compact Slewing Drive Reducer For Single Axis Tracking System
IP66 Sealing Compact Slewing Drive Reducer For Single Axis Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE5"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: VE5" Material: QT
Function: Reduce Speed Increase Torque Certification: ISO, CE
Protection: Enclosed IP66 Place Of Origin: Changzhou, China
Warranty: 5~10 Years Size: 3 Inch To 25 Inch
High Light:

Compact Slewing Drive Reducer

,

IP66 Sealing Solar Slew Drive

,

Single Axis 25inch Solar Slew Drive

IP66 Sealing And Compact Slewing Drive Reducer For Single Axis Solar Tracking System



Compact Slewing Drive Reducer Description



A slewing drive is a gearbox specially designed to handle high axial, radial and tilt moment loads while providing high rotational output torque. In different applications, slewing drives may also be referred to as worm gear slewing drives, slewing drives, turret bearings, worm drives, rotary units, and so on.



VE Model Performance Parameters



Model Rated Output Torque (N.m) Holding Torque (N.m) TiltingTorque (N.m) Axial Load (kN) Radial Load (kN) Ratio Precision (degree) Precision(°) IP Self-locking Weight (kg)
3" 600 1800 1500 22 15 31:1 40% ≤0.1 66 Yes 12kg
5" 800 9200 5000 16 27 37:1 40% ≤0.1 66 Yes 18kg
7" 1750 13200 7000 34 58 57:1 40% ≤0.1 66 Yes 32kg
8" 2250 20400 11200 50 80 51:1 40% ≤0.1 66 Yes 28kg
9" 4300 30800 16000 60 130 61:1 40% ≤0.1 66 Yes 52kg
12" 5600 40560 25000 77 190 78:1 40% ≤0.1 66 Yes 65kg
14" 6750 44200 48000 110 230 85:1 40% ≤0.1 66 Yes 88 kg
17" 9460 53040 67000 142 390 102:1 40% ≤0.1 66 Yes 135 kg
21" 16000 65000 89000 337 640 125:1 40% ≤0.1 66 Yes 192 kg
25" 21450 89000 112000 476 950 150:1 40% ≤0.1 66 Yes 251 kg



Advantages


Slewing drives are a powerful and cost-effective alternative to traditional gearbox systems. Its advantages include:

High Power Density: While slewing rings are most commonly used to generate slewing rotation, slewing drive technology utilizes the capacity of its internal slewing ring while introducing built-in drive through a worm gear. Compared with standard slewing ring and pinion, the speed and reduction ratio can be better controlled through the worm gear design.
Space saving: Slewing drives can save a lot of space in the vertical plane, as no additional gearbox is required for speed reduction.
Protecting Internal Components: In harsh environments, enclosed housing slewing drives protect internal components from debris and contamination with different sealing solutions.
Plug and Play: Once the swing drive is in place and connected to a power source, it can be integrated and installed into any system.
Customizable: Slewing drives can be customized to suit their application, such as including multiple drive motors to double torque capacity.



Applications



Slewing drive can be found in many applications including:

Construction Equipment
Renewable Energy Solar Tracker
Wind turbine
Turntables and Welding Positioners
Packaging and Packaging Equipment
assembly line
air platform
vacuum truck
public transport etc.
