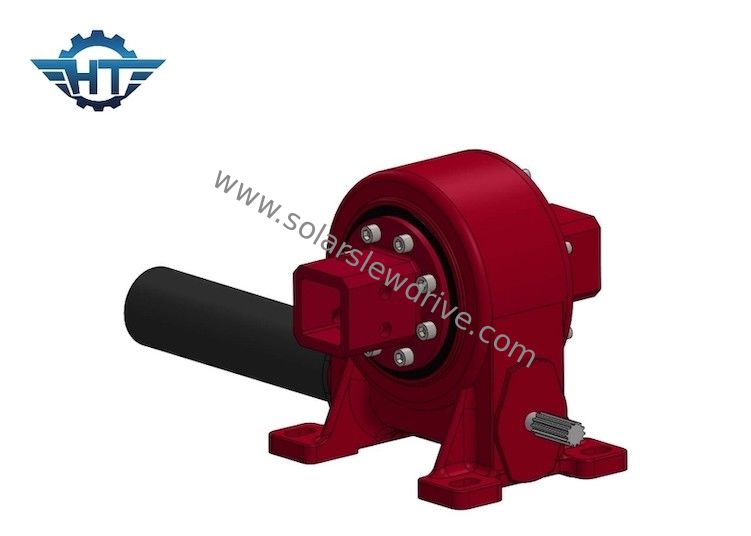

IP66 Single Axis Rotary Solar Slewing Drive WIth High Presicion For PV Trackers

IP66 Single Axis Rotary Solar Slewing Drive WIth High Presicion For PV Trackers

  • IP66 Single Axis Rotary Solar Slewing Drive WIth High Presicion For PV Trackers
  • IP66 Single Axis Rotary Solar Slewing Drive WIth High Presicion For PV Trackers
IP66 Single Axis Rotary Solar Slewing Drive WIth High Presicion For PV Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE3"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 330~450/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Model: VE3"
Gear Ratio: 31:1 Efficiency: 40%
Color: RAL 9006 Application: Solar Tracking Systems
Place Of Origin: Changzhou, China Driver: 24VDC Motor
Warranty: 5~10 Years Certificate: ISO9001, CE
High Light:

Single Axis Rotary Solar Slewing Drive

,

IP66 Solar Slewing Drive

,

High Presicion Rotary Solar Slewing Drive



IP66 Single Axis Rotatory Slewing Drive WIth High Presicion For PV Trackers



Single Axis Rotatory Slewing Drive Description



Rotary slewing drive products can be divided into two types: open type and closed type according to the closed state, and can be divided into gear type and worm gear type according to the different transmission forms. Hangtuo has these types of products, and users need to meet their own application requirements and Use the environment to make choices.
Usually, the closed structure is used in humid, medium dust or corrosive gas environments, and in those occasions with high environmental protection requirements that do not allow the leakage of lubricating grease. The closed environment can effectively prevent impurities from entering the rotary drive body and improve the machine. However, when there is too much dust in the environment and the rotary drive is completely placed in the dust, the seals that play a sealing role will accelerate wear and fail quickly. At this time, the closed environment may be inconvenient for maintenance and parts replacement. It is more appropriate to use an open structure, and to choose tooth surface hardening to improve the durability of the machine. In addition, the open structure is easy to clean up impurities. If the use and maintenance can be done well, it may not necessarily have a shorter life than the closed structure. In the process of product selection, various factors must be considered comprehensively.



Performance parameters of VE series



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



DC Motor



1. Adopt dual supporting structure for output shaft so that the max torque of gearbox is increased a lot.

2. Sun wheel and planetary wheel are connected by spline which increase the max torque of gearbox and lengthen the life.

3. We use helical gear at input stage which make the noise low anf run smoothly in high speed. The inner gear ring is separated so that we can make more ratio and the design is flexible. Gearbox and motor are located by a seam fix by screw in axial which increase the matching precision and reduce noise.

4. We use rolling pin holder inside planetary wheel.we use rolling pin grinding instead of sliding grinding so the life of gearbox is much longer.

5. Double supporting structure; Internal grinding on inner bore of planetary gears making the inner bore roundness less than 0.003mm;running by rolling instead of sliding; HRC60 gear surface precision scraping;The adopting of all these technoligies ensure the super quiet and steady operating and a long life time over 10000 hours.
