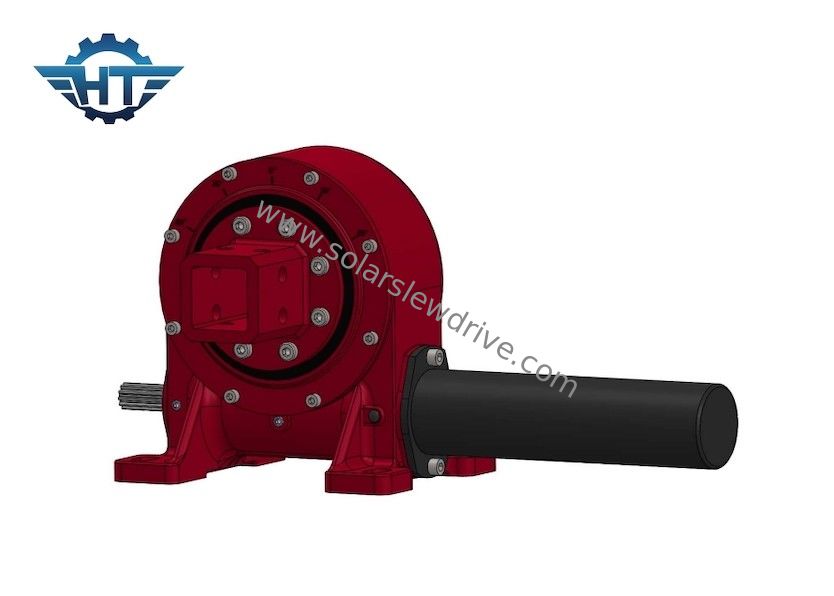

Vertical Worm Gear Slewing Drive With High Holding Torque For Solar Panel System
Vertical Worm Gear Slewing Drive Description
Hangtuo's worm gear and worm slewing drive includes two categories: cylindrical worm and envelope worm. Among them, the cylindrical worm is suitable for medium-speed and heavy-duty applications, and the enveloping worm is suitable for low-speed heavy-duty and high-precision applications. The worm gear and worm slewing drive can be self-locking , in the field of power sports, it can provide basic safety guarantee and further simplify the overall design of the equipment. It is an excellent industrial accessory. Hangtuo's gear-type slewing drive products are suitable for high-speed medium-load and high-speed light-load conditions, especially suitable for the use of light-load tooling attachments for construction machinery. Both open and closed types are available. The main parts are made of high-quality medium carbon alloy steel. Standard heat treatment and precise CNC equipment processing and manufacturing, and optimized design of structure and strength, can choose high durability type with hardened tooth surface, or ordinary type with better economy, this product is economical and easy to maintain Convenience and low maintenance costs, it is the best choice for civilian products.
Parameters of VE Series Slewing Drive
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Application
Typical slew drive applications include solar industry, truck cranes, man lifts, utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability.
