Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE3" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1100/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Gear Ratio: | 31:1~150:1 | Normal Output Torque: | 400~21000 Nm |
|---|---|---|---|
| Place Of Origin: | Changzhou, China | Holding Torque: | 1800~89000 Nm |
| Tilting Torque: | 1000~112760 Nm | Rated Output Torque: | 0.02~1 RPM |
| Usage: | Tilted Solar Tracking System | Protect Feature: | IP66 |
| High Light: | Small Slew Drive Planetary Gearbox,89000 Nm Solar Slew Drive,Tilted Solar Tracking Slew Drive |
||

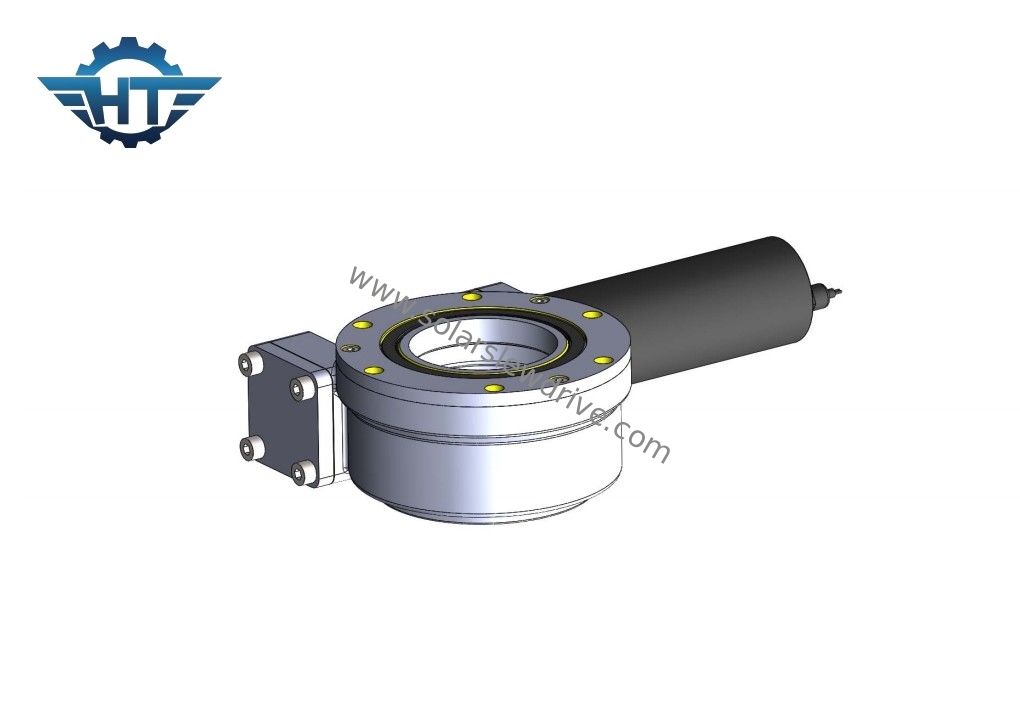

Horizontal Type Small Slew Drive With Planetary Gearbox For Tilted Solar Tracking System
Small Slew Drive Description
Worm slewing drive and gear slewing drive are highly integrated modular slewing reducers. Users do not need to purchase individual parts one by one and then assemble them into products with worm gear slewing drive and gear slewing drive functions. Unnecessary production preparation procedures are reduced, and production efficiency is greatly improved. In a sense, the gear-type slewing drive can replace all toothed slewing bearings. Compared with the slewing bearing, it has the advantages of simple installation, easy maintenance, and saving installation space to a greater extent.
SE Series Slewing Drive Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Solar Tracking System & How They Work
Solar tracking systems direct various loads (solar photovoltaic panels, mirrors, reflectors or lenses) towards the sun. The tracker is used to maximize the incident light by tracking the sun's moving position. Solar trackers can be classified according to the number and orientation of their axes and whether they employ a fixed, single-axis or dual-axis tracking system.
