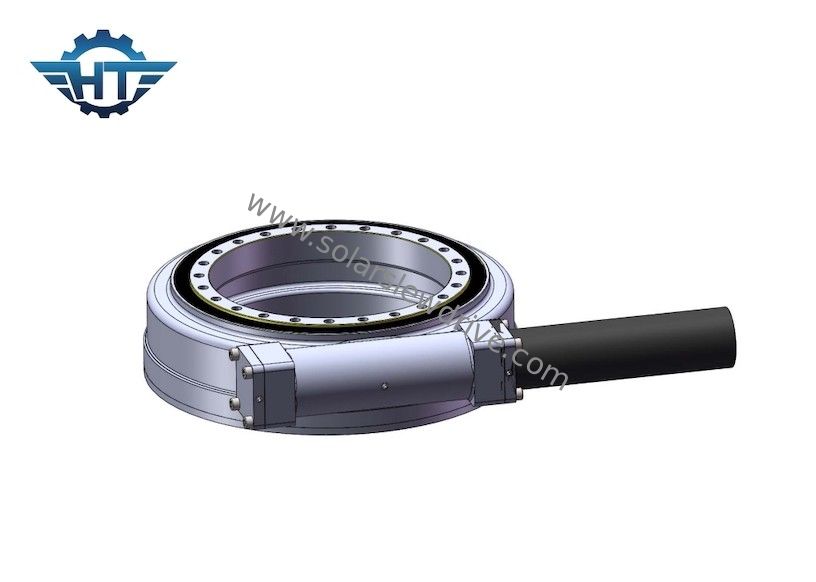

IP66 Reverse Self Lock Slew Drive Gearbox With High Transmission Ratio For Cranes

IP66 Reverse Self Lock Slew Drive Gearbox With High Transmission Ratio For Cranes

  • IP66 Reverse Self Lock Slew Drive Gearbox With High Transmission Ratio For Cranes
  • IP66 Reverse Self Lock Slew Drive Gearbox With High Transmission Ratio For Cranes
IP66 Reverse Self Lock Slew Drive Gearbox With High Transmission Ratio For Cranes
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE12"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Material: QT Self-lock: Yes
Tilting Torque: 54.4 KNm Holding Torque: 40.5 KNm
Application: Cranes Installation Site: Construction Machinery
Packaging: Plywood Motor: AC Motor
High Light:

Reverse Self Lock Slew Drive Gearbox

,

AC Motor Slew Drive Gearbox

,

High Transmission Ratio Slew Drive Gearbox

IP66 Reverse Self Lock Slew Drive Gearbox With High Transmission Ratio For Cranes



Self Lock Slew Drive Description



The slewing drive device incorporates a full-circumferential slewing deceleration transmission mechanism of the driving power source. It uses the slewing bearing as the driven part of the transmission system and the attachment part of the mechanism. According to the attachment of the driving part, the driving source and the cover on one of the inner and outer rings of the slewing bearing The other ring is used as the driven part of the transmission system and as the connection base of the driven working part, so the use of the slewing bearing itself is the characteristic of the full-circle slewing connection, and the driving power source and the main transmission system parts are configured. , making it a kind of universal deceleration transmission mechanism that integrates the functions of rotation, deceleration and driving, and at the same time has a simple structure and is convenient to manufacture and maintain.



Parameters of SE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Application



The slewing ring bearings can be used for a wide range of applications. The areas of deployment range from excavators and cranes, opencast mining and wind turbines, to antenna. Other fields of application include engineering and solar tracking system.
