High Prevention Worm Gear Slew Drive For Dual Axis Solar Tracking System

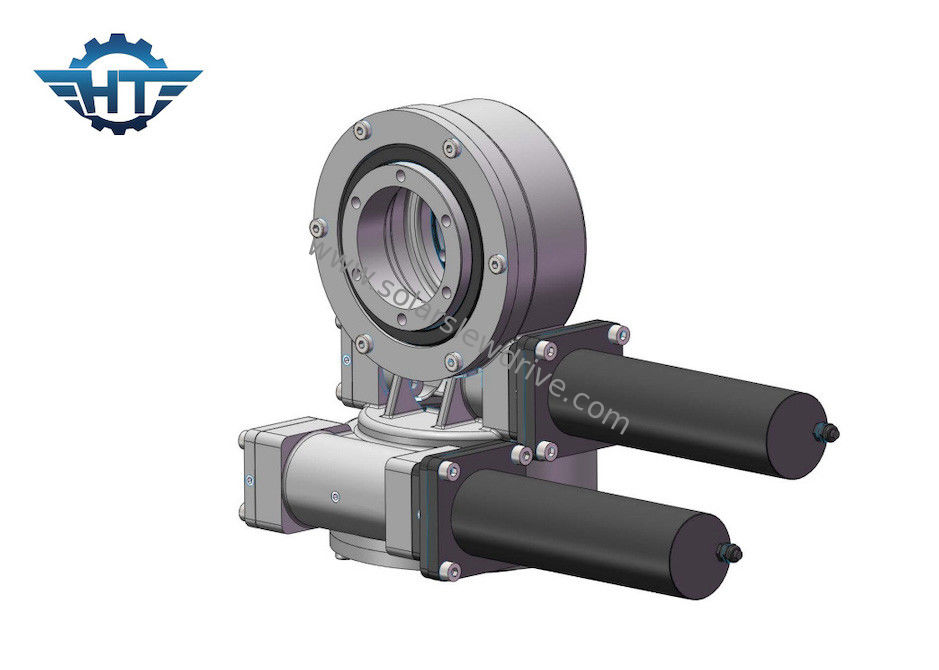

High Prevention Worm Gear Slew Drive For Dual Axis Solar Tracking System

  • High Prevention Worm Gear Slew Drive For Dual Axis Solar Tracking System
  • High Prevention Worm Gear Slew Drive For Dual Axis Solar Tracking System
High Prevention Worm Gear Slew Drive For Dual Axis Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE17"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 1000~1200/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model Number: SDE17 Gear Ratio: 102:1
Colour: As Requested Holding Torque: 53040 Nm
Tilting Torque: 67000 Nm Output Torque: 9460 Nm
Raw Material: 50Mn, 42CrMo Weight: 320 Kg
High Light:

High Prevention Worm Gear Slew Drive

,

Worm Gear Dual Axis Slew Drive

,

Dual Axis Solar Tracking Slew Drive

Small Size High Prevention Worm Gear Slew Drive For Dual Axis Solar Tracking System



Worm Gear Slew Drive Description



The worm gear slewing drive with the worm gear mechanism is often used in the occasions where the two axis load and large transmission ratio are needed in the intermittent work. Slewing drives can be used for applications that do circular rotations. This product can be widely used in construction machinery fields such as aerial work vehicles, truck cranes, solar photovoltaic power generation, wind power generation and other new energy fields, as well as other fields of automation, machine tool manufacturing, aerospace communications, etc.



Performace of SDE Series



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load(kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Features



1. achieve clockwise and counterclockwise rotation

2. high IP rate of 66 grade to prevent the water and dust and is very suitable for used in outside

3. three types: SE, VE and SDE series slew drives, VE series are mostly applied in solar tracking system, parabolic concertrated power, while the SE series are mostly applied in construction machinery. The SDE series are dual axis slew drives, they can help the solar system to track the sun at any time and at any direaction.



Application



Slewing drives are usually found in application such as: wind turbines, heavy load transporters, solar trackers, CSP, CPV, satellite antenna, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.
