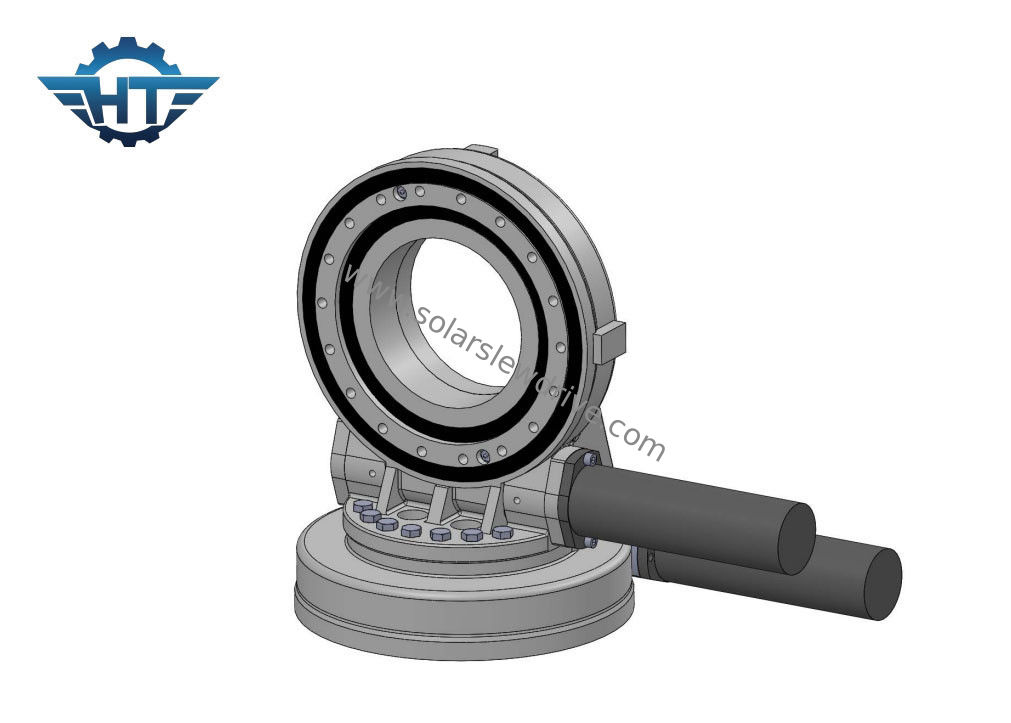

QT Made Dual Axis Slew Drive 25 Inches For Panel Mounting Solar Tracking System

QT Made Dual Axis Slew Drive 25 Inches For Panel Mounting Solar Tracking System

  • QT Made Dual Axis Slew Drive 25 Inches For Panel Mounting Solar Tracking System
  • QT Made Dual Axis Slew Drive 25 Inches For Panel Mounting Solar Tracking System
QT Made Dual Axis Slew Drive 25 Inches For Panel Mounting Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Model: 1 Inch To 25 Inches
Gear Ratio: 31:1~150:1 Efficiency: 40%
Precise: ≤0.1° Motor: Electric Motor, Stepper Motor
Color: As Requested Feature: Long Life
High Light:

25 inches Dual Axis Slew Drive

,

QT Made Dual Axis Slew Drive

,

Dual Axis Slew Drive Panel Mounting

QT Made Dual Axis Solar Slew Drive For Solar Panel Mounting Solar Tracking System



Dual Axis Solar Slew Drive Description



The characteristic of the slewing drive reducer is the use of the slewing gear and worm. It has the function of slewing, deceleration and drive, which is a kind of reducer. The advantages of the slewing drive reducer is that the structure is simple, the capacity is large, the ability to adapt to the environment is strong, and the production, installation and maintenance are simple, as well as the stability and safety of the work. Therefore, the slewing drive reducer is widely used.



SDE Model Performance Parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Package



Wooden case free from fumigation.



Our Services



1. 24 hours online technical support

2. OEM available

3. Free custermized logo
