Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE7" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | SDE7" | Rated Output Torque: | 2000 Nm |
|---|---|---|---|
| Holding Torque: | 13500 Nm | Tilting Torque: | 7500 Nm |
| Material: | QT | Gear Ratio: | 57:1 |
| Efficiency: | 40% | Standard Color: | RAL 9006 |
| High Light: | 24VDC Dual Axis Solar Slew Drive,Solar Trackers Slew Drive Dual Axis,Planetary Reducers Solar Slew Drive |
||

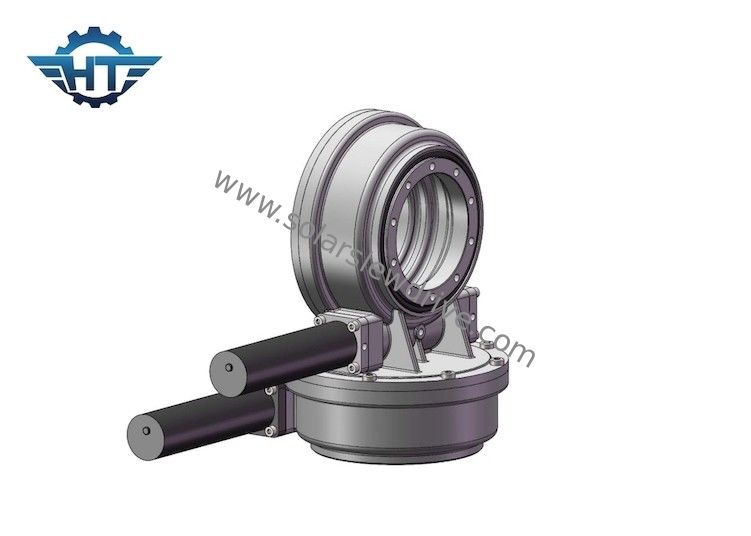

24VDC Dual Axis Solar Slew Drive With Planetary Reducers For Long Life Field Solar Trackers
Dual Axis Solar Slew Drive Description
Hangtuo's slewing drive has an IP66 degree of protection. If the slewing drive is used in wet or dirty environments, a skeletal oil seal mounted on the housing structure protects the interior of the assembly from contamination. Because the performance and reliability of the slewing drive depends to a large extent on the internal stability. It is worth noting that high pressure water guns cannot be used to clean the swing drive, as the pressurized water will penetrate the seal and enter the inside of the swing drive, which will greatly reduce the service life.
7 inch dual axis slew drive are perfect for situations which need track towards the sun all the time from sunrise to sunset. It can increase the energy production capacity. Typical applications include dual axis solar trackers, it can also applied in satellite and radar dishes, machines which need moving 360 degrees at both directions.
SDE Slewing Drive Performance Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Applications
1) Optimal inclination fixed solar tracking system
At low latitudes, the increase in electricity generation is minimal due to the lower optimal inclination (as in 8°, almost no increase); At high latitudes, the optimum inclination is large and the amount of electricity generated is significantly higher (for example, by about 25% at 50°)
2) Flat single axis solar tracking system
It track the change of incident angle within a day of the sun, and its rate of increase in electricity generation at low latitudes is significantly better than that of high latitudes. It is generally believed that flat single axis tracking is more suitable for the use of the latitudes less than 30 °.
3) Oblique single axis solar tracking system
It is more suitable for high latitudes.
4) dual axis tracking system
This approach is clearly the highest in the increase in electricity generation due to the tracking of changes in the incident angle of the sun within a day and within a year.
5) Fixed adjustable system
This type is based on the change of the angle of incidence within a year of the sun to adjust the inclination of the bracket, thus achieving an increase in power generation
