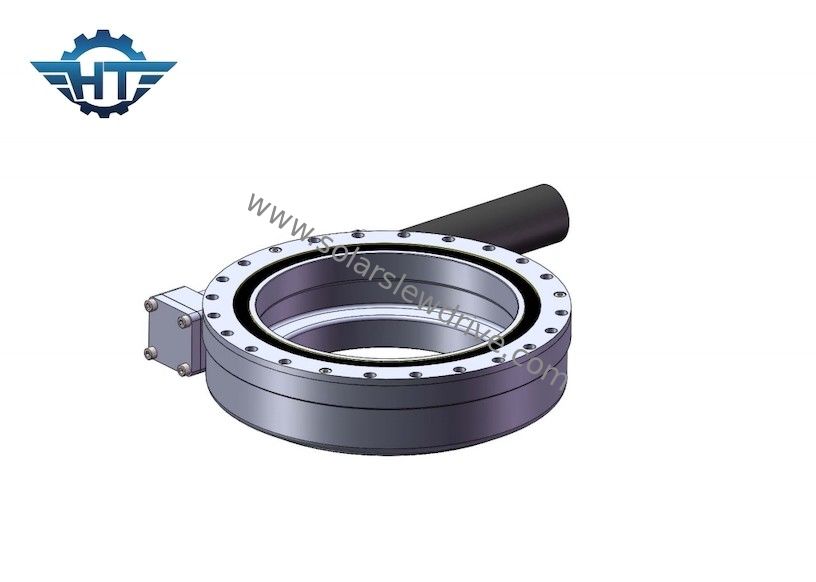

SE3 Small Solar Worm Gear Slewing Drive For PV Mounting Tracking System

SE3 Small Solar Worm Gear Slewing Drive For PV Mounting Tracking System

  • SE3 Small Solar Worm Gear Slewing Drive For PV Mounting Tracking System
  • SE3 Small Solar Worm Gear Slewing Drive For PV Mounting Tracking System
SE3 Small Solar Worm Gear Slewing Drive For PV Mounting Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE3“
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Gear Ratio: 31:1 Normal Output Torque: 533 Nm
Place Of Origin: Changzhou, China Holding Torque: 7000 Nm
Tilting Torque: 744 Nm Rated Output Torque: 0.065 RPM
Usage: Solar Trackers Protect Feature: IP66
High Light:

SE3 Solar Worm Gear Slewing Drive

,

7000 Nm Solar Worm Gear Slew Drive

,

Solar Tracking System Gear Slew Drive

SE3 Small Solar Worm Gear Slewing Drive For PV Mounting Tracking System



Worm Gear Slewing Drive Description



Changzhou Hangtuo's compact worm drive is known for its high power density. The worm drive ensures the transmission of torque to the slewing ring. This design is particularly suitable for applications with high forces and limited space, such as steering gearboxes for the chassis of cranes and heavy vehicles, loading cranes, construction and agricultural and forestry machinery.



Parameters of SE Horizontal Slewing Drive



Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182



Slewing Drive DC Motor



1. Adopt Dual supporting structure for output shaft so that the max torque of gearbox is increased a lot.

2. Sun wheel and planetary wheel are connected by spline which increase the max torque of gearbox and lengthen the life.

3. We use helical gear at input stage which make the noise low anf run smoothly in high speed. The inner gear ring is separated so that we can make more ratio and the design is flexible. Gearbox and motor are located by a seam fix by screw in axial which increase the matching precision and reduce noise.

4. We use rolling pin holder inside planetary wheel.we use rolling pin grinding instead of sliding grinding so the life of gearbox is much longer.

5. Double supporting structure; Internal grinding on inner bore of planetary gears making the inner bore roundness less than 0.003mm;running by rolling instead of sliding; HRC60 gear surface precision scraping;The adopting of all these technoligies ensure the super quiet and steady operating and a long life time over 10000 hours.
