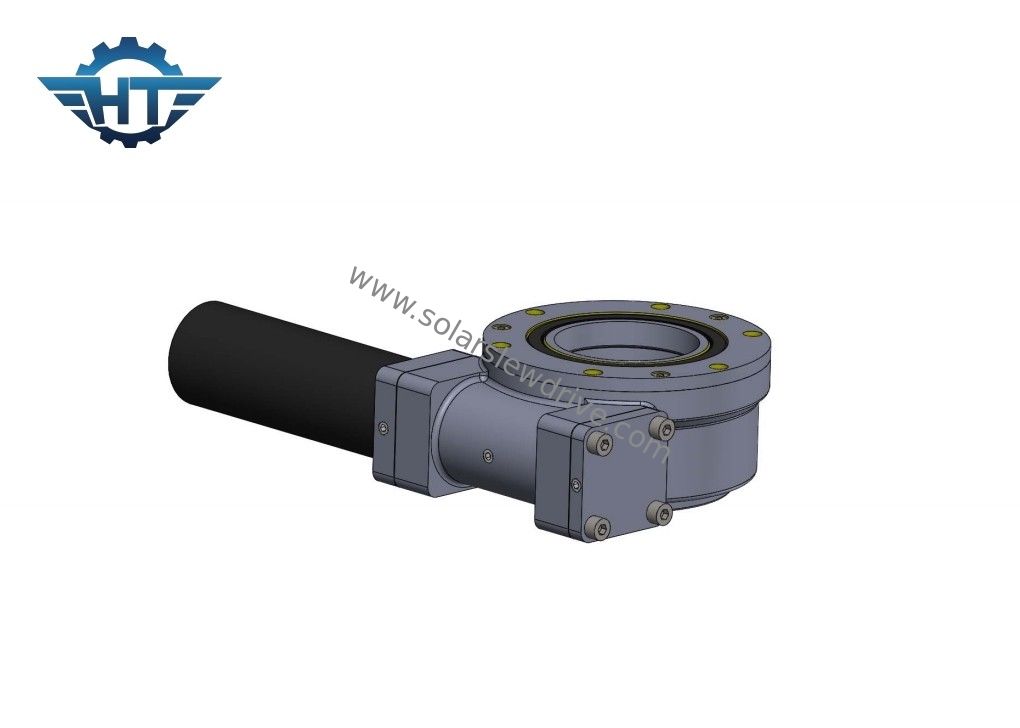

Worm Gear Small Size Slewing Ring Bearings For Lingkage Solar Tracking System

Worm Gear Small Size Slewing Ring Bearings For Lingkage Solar Tracking System

  • Worm Gear Small Size Slewing Ring Bearings For Lingkage Solar Tracking System
  • Worm Gear Small Size Slewing Ring Bearings For Lingkage Solar Tracking System
Worm Gear Small Size Slewing Ring Bearings For Lingkage Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE3"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Gear Ratio: 31:1 Protect Feature: IP66
Normal Output Torque: 533 Nm Place Of Origin: Changzhou, China
Holding Torque: 7000 Nm Tilting Torque: 744 Nm
Rated Output Torque: 0.065 RPM Usage: Solar Trackers

Worm Gear Small Size Slewing Ring Bearings For Lingkage Solar Tracking System



Small Size Slewing Ring Bearings Description



The rotary reducer is a full-circle rotary deceleration transmission mechanism that integrates a driving power source. It uses a slewing bearing as a transmission follower and a mechanism attachment. The driving source and the casing, and the other ring is used as both the transmission follower and the connection base of the driven working part, so that the slewing bearing itself is a full-circumference slewing connection, and the driving power source and The main transmission parts make it a universal deceleration transmission mechanism that integrates the functions of rotation, deceleration and driving, and at the same time has a simple structure and is convenient to manufacture and maintain.



Parameters of SE Slew Ring Drive



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Advantage



1. Employ a worm gear to achieve rotation, which are slower in speed but can magnify an input torque at much higher ratios and are used in applications requiring high torque

2. Enclosed design, IP66 protection grade which is perfect for outdoor harsh conditions like harbor, mining etc.

3. Self-lock feature which make it a safety part

4. Can attach different gear motor to gain large transmission gear ratio, thus giving the whole unit low speed with high torque
