Envelope Worm Slewing Drive Gearbox For High Accuracy CSP Trough Project

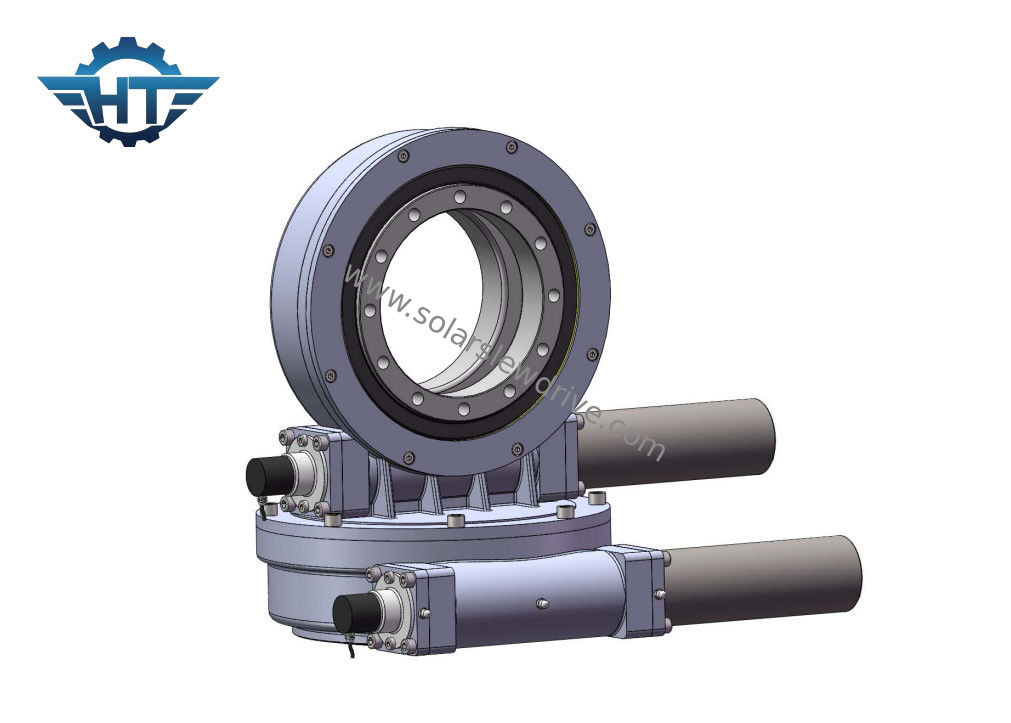

Envelope Worm Slewing Drive Gearbox For High Accuracy CSP Trough Project

  • Envelope Worm Slewing Drive Gearbox For High Accuracy CSP Trough Project
  • Envelope Worm Slewing Drive Gearbox For High Accuracy CSP Trough Project
Envelope Worm Slewing Drive Gearbox For High Accuracy CSP Trough Project
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE12"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Material: QT Self Locking: Yes
Service: OEM Design Accuracy: Less Than 0.05°
Color: As Requested Installation Site: Everywhere
Packaging: Plywood Motor: Stepper Motor
High Light:

Envelope Worm Slewing Drive Gearbox

,

Slewing Drive CSP Trough Project

,

High Accuracy Slewing Drive Gearbox

Envelope Worm Used Slewing Drive Gearbox For High Accuracy CSP Trough Project



Envelope Worm Used Slewing Drive Description



If the trough project uses the slewing drive reducer as the power drive unit, it is suitable to choose a single-axis elevation moving slewing drive reducer, and the tower CSP station is generally suitable for vertical and horizontal moving dual-axis integrated slewing drive reducer. This is because the trough power station adopts a single-axis tracking method and the requirements for tracking accuracy are slightly lower than that of the tower power station, and the mirror only needs to track the pitch angle of the sun through the single-axis slewing drive reducer to meet the requirements of the power station. The tower CSP station needs to accurately reflect sunlight to the heat absorber through the mirror field in real time, so it is necessary to use a dual-axis rotary reducer to take into account the elevation angle and azimuth angle, so that each mirror in the mirror field can achieve real-time accurate sunlight tracking, thereby improving the power generation efficiency. Therefore, the accuracy and performance requirements of the tower CSP for the slewing drive reducer are generally higher than those of the trough power station.



Parameters of SDE Series



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Weight (kg)
3" 31:1 600 1500 5800 10 15 25
5" 37:1 800 6000 9200 16 27 34
7" 57:1 2000 7500 13200 34 58 56
9" 61:1 4300 16000 27200 60 130 92
12" 78:1 5800 25000 40560 77 190 160
14" 85:1 6750 48000 44200 110 230 224
17" 102:1 9460 67000 53040 142 390 320
21" 125:1 16000 89000 65000 337 640 492
25" 150:1 21450 112000 89000 476 950 705



Application



The enclosed housing slewing drives are widely used in the different engineering application such as heavy loader transporters, harbor mobile crane, ship lifting, claw trucks, container lift crane, and movable gantry cranes, mine machine, excavator, concrete machine, paper machine, as well as wind power generation system also use our slewing drive.



When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels.



Generally, 3 inch slewing drive is suitable for solar power system coming with 3-5㎡ solar panel, 7 inch for 10-17 ㎡ solar panel, 9 inch for 18-30 ㎡, 12 inch for 31-45㎡, and 14 inch for 46-60㎡.
