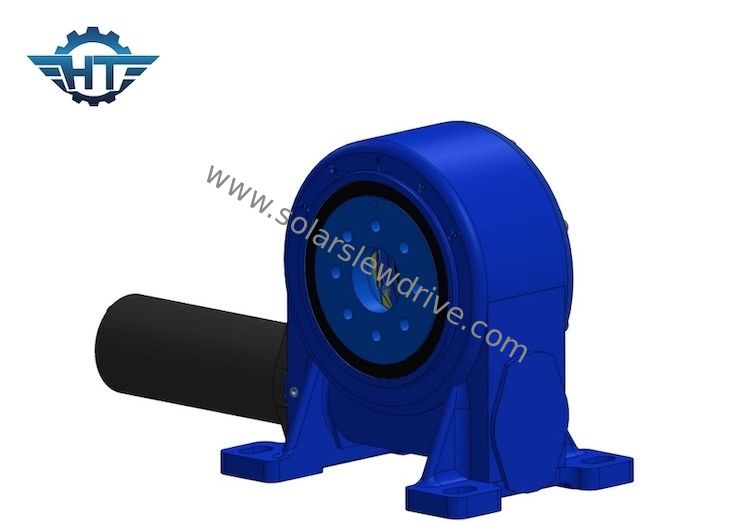

Worm Gear Slewing Drive Reducer With Stepper Motor For CSP Power Stations

Worm Gear Slewing Drive Reducer With Stepper Motor For CSP Power Stations

  • Worm Gear Slewing Drive Reducer With Stepper Motor For CSP Power Stations
  • Worm Gear Slewing Drive Reducer With Stepper Motor For CSP Power Stations
Worm Gear Slewing Drive Reducer With Stepper Motor For CSP Power Stations
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Worm Gear Reduction: VE9 Gear Ratio: 61:1
Application: Solar Tracking System Place Of Origin: Changzhou, China
Driver: DC Motor Certificate: ISO9001, CE
Structure: Worm And Gear Maintenance: Easy
Color: Silver Grey Tooth Type: Muti-tooth Contact
High Light:

Worm Gear Slewing Drive Reducer

,

CSP Power Stations Gear Slewing Drive

,

Stepper Motor Worm Gear Slewing Drive

Worm Gear Slewing Drive Reducer With Stepper Motor For CPV And CSP Power Stations



Slewing Drive Reducer Description



How to select s slewing drive for solar tracking system?

A. Solar tracking type (customers can attach pictures)

Dual-axis tracking, single-axis tracking (flat single-axis, inclined single-axis), Groove tracking, butterfly tracking

B. The total area of solar panels (the area and number of each solar panel)

C. What are the maximum turning torque and overturning moment?

D. Power selection: whether to configure geared motor (DC 24/12V AC 380V)



VE9 Worm Gearbox Slewing Drive Specification



Model VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 4300 N.m
Tilting Moment Torque 16 K N.m Holding Torque 27.2 K N.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 61:1 Efficiency 40%



VE9 Speed Reducer Applications



Photovoltaic power generation field
Photovoltaic power generation is an important application field of rotary drive. The use of solar photovoltaic modules with rotary drive as a rotating component can accurately adjust the rotation angle and elevation angle of the host according to the different positions of the sun during the day, so that the solar panels can be in the best possible position. the best receiving angle.



Wind power generation
Similar to photovoltaic power generation, the slewing drive can be applied to the yaw part of the wind turbine to realize the horizontal 360° rotation of the mechanism, so as to better adjust the receiving angle.
