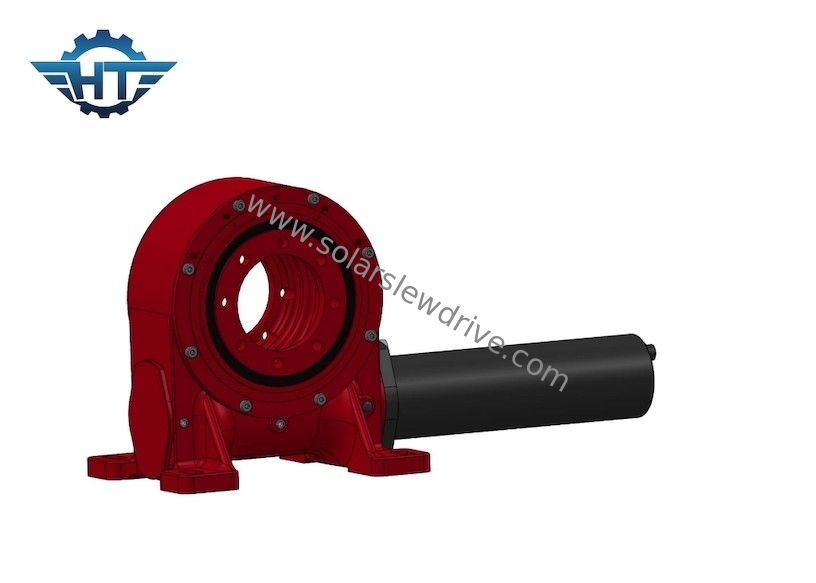

Enclosed House Solar Slew Drive Single Axis 9 Inch For Sun Tracking System

Enclosed House Solar Slew Drive Single Axis 9 Inch For Sun Tracking System

  • Enclosed House Solar Slew Drive Single Axis 9 Inch For Sun Tracking System
  • Enclosed House Solar Slew Drive Single Axis 9 Inch For Sun Tracking System
Enclosed House Solar Slew Drive Single Axis 9 Inch For Sun Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Model: VE9"
Gear Ratio: 61:1 Rated Torque: 4300 Nm
Holding Torque: 27200 Nm Tilting Torque: 16000 Nm
Efficiency: 40% Square Output: Customized
High Light:

Solar Slew Drive Single Axis

,

Enclosed House Solar Slewing Drive

,

9 Inch Solar Slew Drive

Enclosed House Single Axis 9 Inch Slewing Drive For Sun Tracking System



9 Inch Slewing Drive Description



Worm gear reducer (slewing drive) is a new type of slewing product, usually also called slewing bearing. It is usually composed of worm, slewing bearing, housing, motor and other components.

Since the core component adopts slewing bearing (slewing bearing), it can bear axial force, radial force and overturning moment at the same time. Compared with the traditional rotary products, the rotary drive device has the characteristics of simple installation, easy maintenance, and saving installation space to a greater extent. This product can be widely used in construction machinery and new energy fields such as heavy-duty flatbed trucks, container cranes, truck-mounted cranes, aerial work vehicles, and solar power generation systems.



Technical Data of VE Model Slewing Drive



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Advantages



1. High backholding torque to improve the solar tracking system's safety

2. Hard stop inside in case the mulfunctioning of the software control system

3. Enveloping worm drive inside

4. Multi tooth contact to ensure high load

5. Self-locking function

6. Square tube output 110*110 mm or 94*94mm
