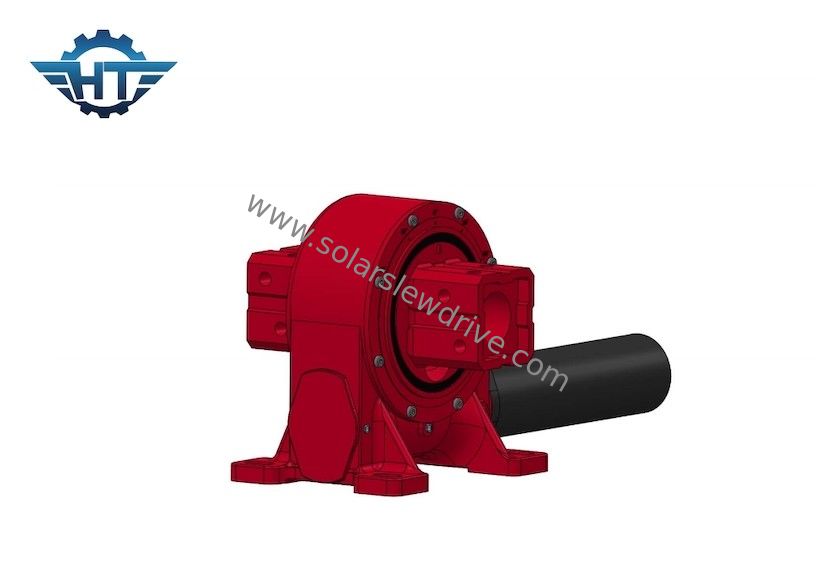

VE9 Solar Slewing Drive 60 Degree Rotate With Hard Stop Inside For PV Trackers
Solar Slewing Drive Description
Due to the use of slewing bearing and annular worm structure, the slewing drive can achieve multi-tooth contact, has the characteristics of large transmission torque and stable operation. It can withstand large radial and axial loads and strong overturning moments ( wind resistance), is being widely used in solar photovoltaic power generation tracking system and other new energy industries by domestic and foreign customers. The products currently have 9 models ranging from 3 inches in diameter to 25 inches in diameter, and more than 60 varieties, which can meet the needs of different forms of photovoltaic, photoelectric, photothermal ordinary and precision tracking.
| Product name | Vertical Slew Drives |
| Application | Solar Pv Panels Tracker And Trough Concentrated Power |
| Axis | Vertical |
| Worm | Single |
| Service | OEM, Customized Solution |
| Package | Standard Plywooden Case |
| Delivery Time | 15 days |
| Service Life | 30 years |
| Protection level | IP66 |
| Warranty time | 5 Years |
Parameters of VE Series Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Product Advantages
1. Skeleton oil seal to avoid oil leakage efficiently
2. The mounting dimension designed could match many applications.
3. Easy maintenance
4. Adopt envelop worm gear structure which has strong adhesion and driving torque
5. Hard stop inside incase of mulfunctioning of the software control system
