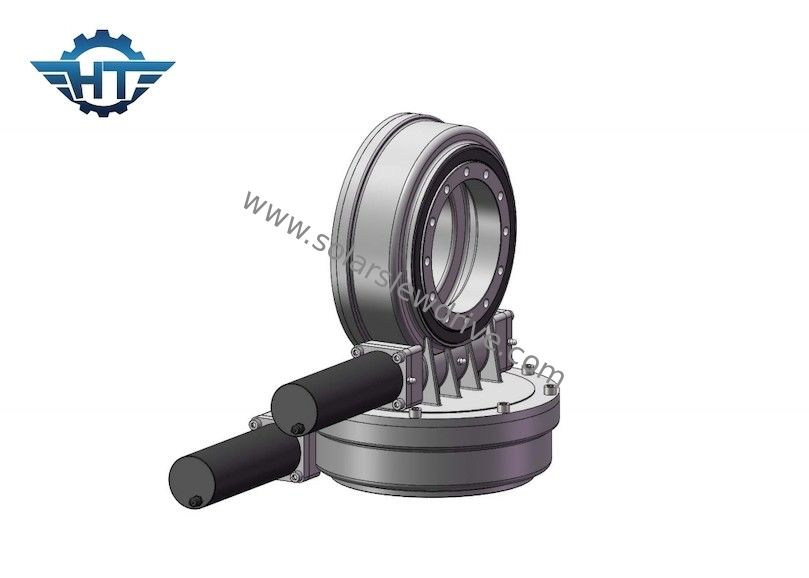

IP66 Solar Worm Gear Dual Axis Slew Drive For High Presicion PV Tracking System

IP66 Solar Worm Gear Dual Axis Slew Drive For High Presicion PV Tracking System

  • IP66 Solar Worm Gear Dual Axis Slew Drive For High Presicion PV Tracking System
  • IP66 Solar Worm Gear Dual Axis Slew Drive For High Presicion PV Tracking System
IP66 Solar Worm Gear Dual Axis Slew Drive For High Presicion PV Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~330/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 7 Inches Gear Ratio: 57:1
Efficiency: 40% Precise: ≤ 0.1
Driver: Electric Motor Type: Dual Axis
Application: High Presicion PV Tracking System Color: As Requested
High Light:

Dual Axis Worm Gear Slew Drive

,

Dual Axis Slew Drive PV Tracking System

,

High Presicion Dual Axis Slew Drive

IP66 Dual Axis Solar Worm Gear Slewing Drive For High Presicion PV Tracking System



Dual Axis Solar Worm Gear Slewing Drive Description



The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis, or in multiple axes together. Slewing drives are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox. By adopting slewing bearing as its core component, slewing drive can bear axial force, radial force and tilting moment simultaneously. Electric and planetary gearboxes can be designed according to customer’s requirements. Slewing drive has the advantage for saving space in facilities, max load capacity in a compact design, extensive lifespan, and reduced maintenance costs. Applications: trailers, all types of cranes, aerial working platform, solar tracking systems and wind power systems.



VE6 worm gear slewing drive is a compact solution with high transmission, consisting of a slewing ring with external gear, combined with an adjoining geared worm shaft. By the self-locking gearset, no break is necessary on the driving engine. Available with directly mounted planetary geared motors. Worm drive—higher wear-resistance of worm gear drive, which can load strong output torque and tilting moment torque with the well performance of stability and reliability. The worm drive is also available for higher tracking precise field.



Data Sheet of VE Slew Drives



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Applications



Include solar trackers, wind turbines, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, automotive lifts and wind turbines, dishes, satellite antenna etc.
