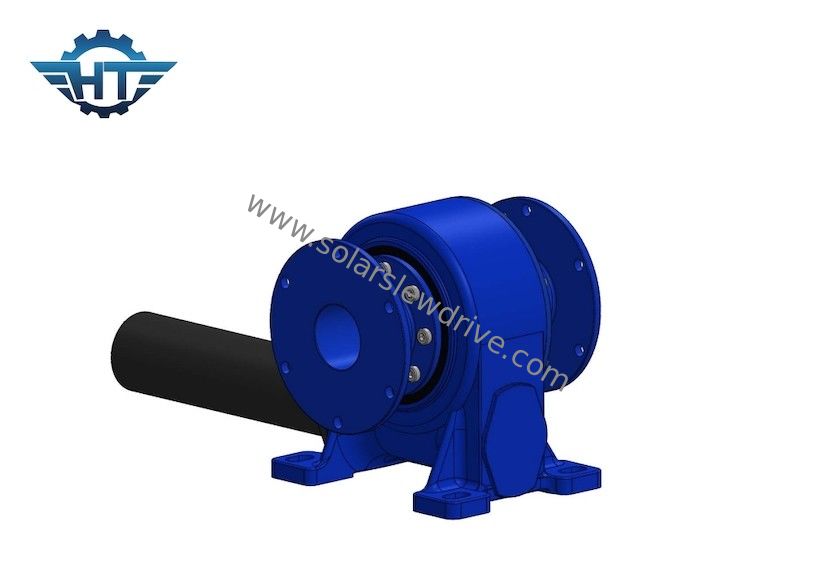

Self Locking Solar Slew Drive For CSP Concentrated Solar Tracking System

Self Locking Solar Slew Drive For CSP Concentrated Solar Tracking System

  • Self Locking Solar Slew Drive For CSP Concentrated Solar Tracking System
  • Self Locking Solar Slew Drive For CSP Concentrated Solar Tracking System
Self Locking Solar Slew Drive For CSP Concentrated Solar Tracking System
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE5"
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 145~226 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Type: Single Axis Slewing Drive Material: QT
Application: CSP Concentrated Solar Trackers Warranty: 10 Years
Color: As Requested Size: 5 Inches
Motor: 24V Feature: Long Life And Self Locking
High Light:

Solar Slew Drive Self Locking

,

Solar Tracking System Slew Drive

,

Solar Slew Drive For CSP Concentrated

Self Locking Solar Slewing Drive For CSP Concentrated Solar Tracking System



Solar Slewing Drive Description



The slewing bearing is mainly composed of ferrules, rolling elements, cages, sealing rings, etc. Since different parts have special functions in practical applications, there are different considerations in the design and selection of materials.
In general, the rolling elements of the slewing ring are made of carbon-chromium bearing steel which is hardened as a whole. The slewing bearing ring is made of surface hardened steel. When the user has no special requirements, it is generally made of 50Mn steel. However, sometimes in order to meet the needs of the host in some special applications, other grades of surface can also be selected according to the specific use conditions provided by the user. Hardened steel, such as 42CrMo, 5CrMnMo, etc.



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Features



1. Rotate from 0~180°

2. Connect a driving motor on the left or right side

3. Grease had been filled before factory

4. Simple installation

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping

8. High backholding torque, suitable for vertical installation

9. Low maintenance
