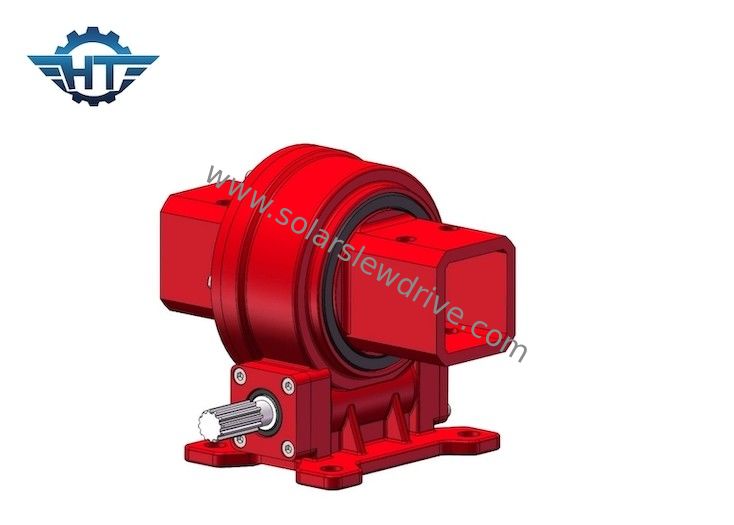

Vertical Envelop Worm Slewing Drive Gearbox For Single Axis Solar Tracking System

Vertical Envelop Worm Slewing Drive Gearbox For Single Axis Solar Tracking System

  • Vertical Envelop Worm Slewing Drive Gearbox For Single Axis Solar Tracking System
  • Vertical Envelop Worm Slewing Drive Gearbox For Single Axis Solar Tracking System
Vertical Envelop Worm Slewing Drive Gearbox For Single Axis Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Material: QT Warranty: 10 Years
OEM: Available Rotation Type: Single Axis
Color: Silver Grey Installation Site: Roof And Field
Feature: Quick Installation Motor: 12V/24V DC
High Light:

Worm Slewing Drive Gearbox

,

Single Axis Solar Tracking System Slew Drive

,

Vertical Envelop Slewing Drive

Vertical Envelop Worm Slewing Drive Gearbox For Single Axis Solar Tracking System



Worm Slewing Drive Description



Slewing drive is also called slewing gear device, slewing drive device, slewing drive pair, slewing reducer, slewing turntable, etc. The main components of slewing drive are: slewing bearing, worm, casting base and some standard parts such as bearings, bolts, etc. The slewing drive device uses axle motion to reduce force consumption and play a role in safety protection.
​​
Slewing drives are mainly used in special vehicle steering platforms, heavy-duty flatbed trucks, container cranes, truck-mounted cranes, truck cranes, aerial work vehicles, cranes, gantry cranes, small wind power stations, aerospace communications, satellite reception, solar tracking systems and many other industries. Especially in recent years, the rapid development of solar photovoltaic power generation industry is widely used. The rotary drive is used in the solar photovoltaic power generation industry, and is generally equipped with a rotary geared motor or an AC geared motor; on construction machinery, a hydraulic motor is mainly configured as a power drive.



VE Model Slewing Drive Technical Parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Our Services



1. MOQ: 1 piece, customers could buy one piece for testing

2. Experiences: we will share more than 10 years experiences and solutions for projects with our clients

3. Production: we assembled the slew drives in our own factory, we can control the quality and the lead time by ourselves.

4. Quality: All the products will under strict checking before leaving factory, checking items: outlook, the start torque, the current if attached with a gear motor, the backlash. If unfortunately happens the quality issues, our reactive time is in 24 hours, if caused by our side after investigating, we will change the parts asap with all the cost by us.
