Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE3" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1100/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Place Of Origin: | Changzhou, China (Mainland) | Feature: | Totally Enclosed |
|---|---|---|---|
| Type: | Dual Axis Slewing Drive | Material: | QT |
| Warranty: | 5~10 Years | Size: | 3 Inches To 25 Inches |
| Application: | Sun Tracking System | Color: | As Requested |
| High Light: | totally enclosed Dual Axis Slew Drive,Small Size Dual Axis Slewing Drive,Sun Tracking System Dual Axis Slew Drive |
||

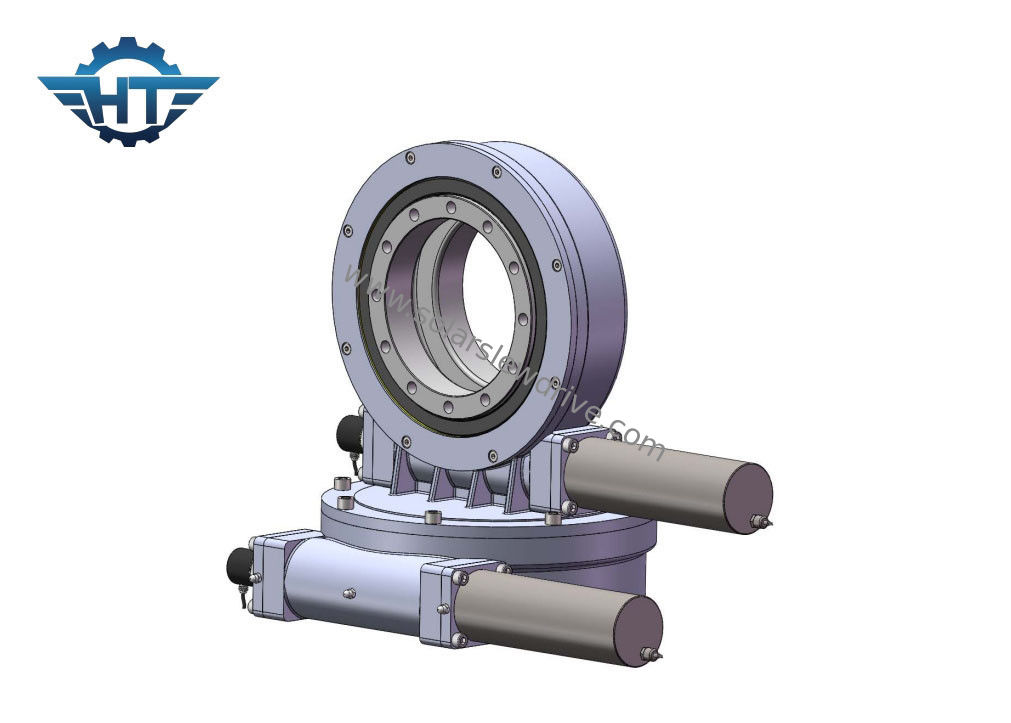

Small Size Dual Axis Slewing Drive For 360° Sun Tracking System
Small Size Dual Axis Slewing Drive Description
Solar energy is a radiant energy that is instantaneous and must be instantly converted into other forms of energy for use and storage. Solar photovoltaic device is a device that uses solar photovoltaic modules to convert solar energy into electrical energy, but solar energy has the disadvantages of low density, intermittent and instability, which is difficult to collect. At present, the photovoltaic system market is mainly fixed solar system, the use of new optimization array operation mode is a major method to solve its instability shortcomings. Such as solar tracking devices-slew drive, in order to keep solar panels in the best position, increase the power generation of photovoltaic systems. The purpose of using solar tracking devices is to capture more solar radiation, thereby increasing electricity generation.
Techical Data of SDE Slew Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Advantages
1. Custom housing to meet your dimensional requirements
2. Custom shaft options: extended, slotted, cross drilled, hollow shaft etc
3. Lead wire options: special lengths, heat shrink, pins, connectors, cable harnesses etc
4. Bearing & lubricant options for high temperature/humid operations
5. IP grade options to cater for different application demand
6. Encoders options
7. Gear ratio options
