Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Worm Gear Material: | 50Mn, 42CrMo | Gear Ratio: | 61:1 |
|---|---|---|---|
| Application: | Solar Energy | Place Of Origin: | Changzhou, China |
| Driver: | 24V DC Planetary Motor | Certificate: | ISO9001, CE |
| Installation: | Vertical/Horizontal | Maintenance: | Internal 5 Years |
| Color: | As Requested | Backlash: | ＜0.1 Degree |
| High Light: | 50Mn worm slew drive,61/1 Gear Ratio slew drive,0.1 degree Solar Tracking slew drive |
||

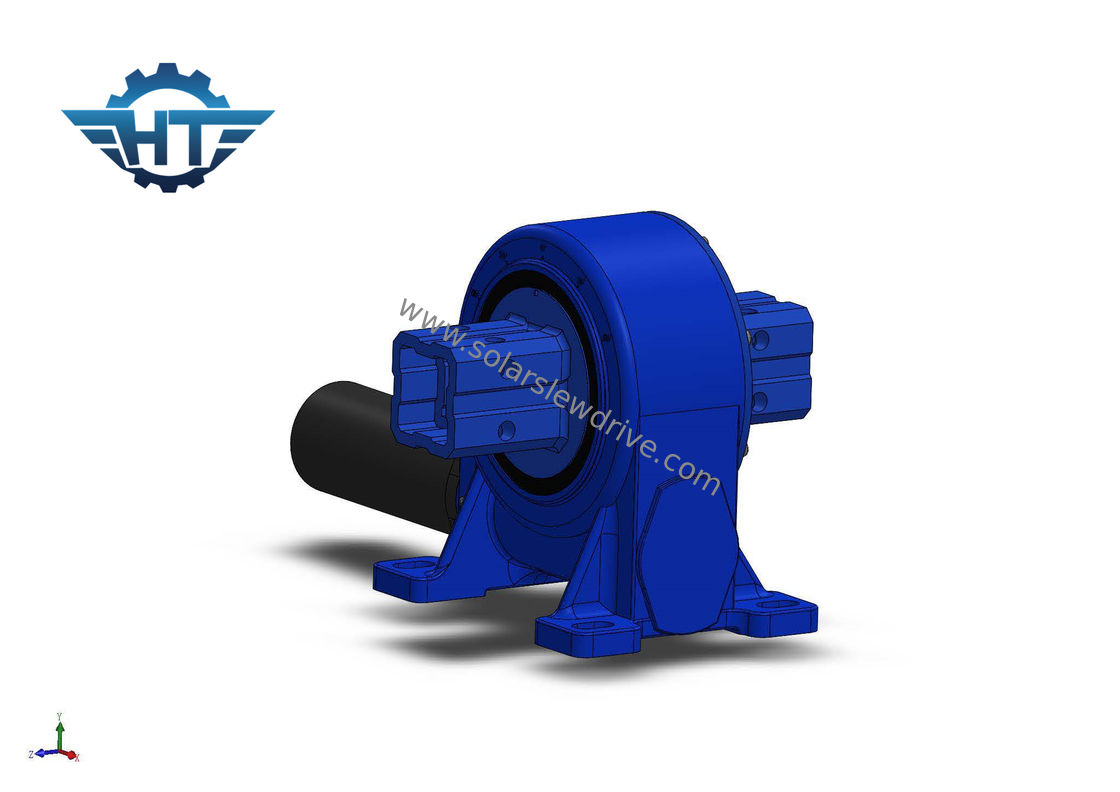

61 To 1 Gear Ratio For Worm Gear Slewing Drive Single Axis Solar Tracking System
Worm Gear Slewing Drive Product Advantages
1. We use skeleton oil seal to avoid oil leakage efficiently
2. The mounting dimension of our slewing drives are designed to match many applications.
3. Easy maintenance, internal 5 years for solar energy using
4. Adopt double envelope worm gear structure which has strong adhesion and moment torque
5. Hard stop inside the slewing drives incase of mulfunctioning of the software control system
Features
1. Rotation ± 60 degrees, hard stop inside
2. Connection of a driving motor from the left or right side
3. During installation, it is not necessary to adjust the gearing clearance, its structure ensured multi-tooth contact
4. Grease had been filled before factory
4. Simple installation and low maintenance, internal 5 years
5. Rational space utilization
6. The gear is self-locking
7. Easy and fluent method of starting and stopping
8. High moment torque, suitable for vertical installation
Parameters of Enveloping Worm Gear Slewing Drive
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
Applications
Worm drives have proven effective in many machines and equipment, in various applications and various operational conditions, such as: construction and assembly platforms, placement of cockpits in forest machinery, material handling equipment, positioning of solar systems, control of superstructures and operational applications of construction machinery, industrial cranes and so on.
