Anti Backlash Solar Slew Drive For Horizontal Single Axis Solar Tracker

Anti Backlash Solar Slew Drive For Horizontal Single Axis Solar Tracker

  • Anti Backlash Solar Slew Drive For Horizontal Single Axis Solar Tracker
  • Anti Backlash Solar Slew Drive For Horizontal Single Axis Solar Tracker
Anti Backlash Solar Slew Drive For Horizontal Single Axis Solar Tracker
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 145~226 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Type: Single Enveloping Worm Gear Material: 42CRMN Or 50Mn
Application: Solar Power System Field Life: 30 Years
Color: As Requested Size: 3 Inch To 25 Inch
Motor: 24V/12V/48V Feature: Long Life And Self Locking
High Light:

Anti Backlash Solar Slew Drive

,

horizontal single axis Solar Slew Drive

,

42CRMN slewing bearing drive

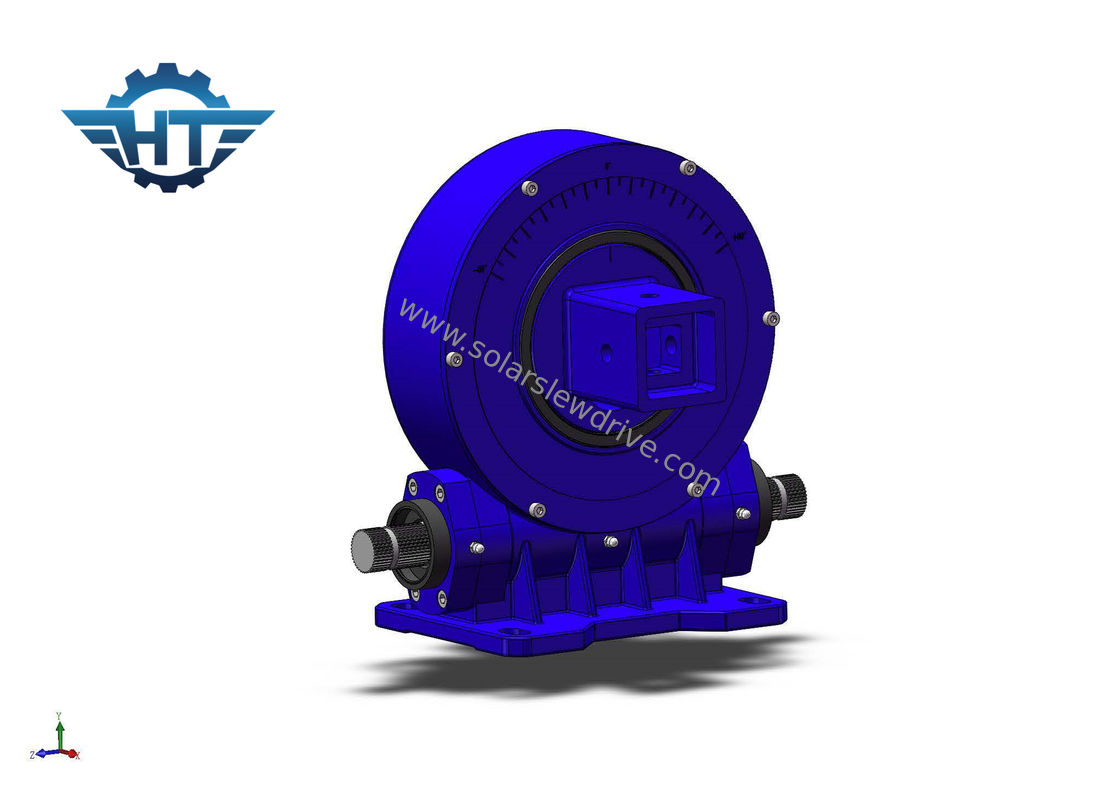

Anti Backlash Worm Gear Solar Slew Drive For Horizontal Single Axis Solar Tracker



Worm Drive Gears Slewing Drive Description



A Slew Drive, commonly referred as a worm drive, is a complete, ready to install system that consists of gear, worm, base, top plate and completely enclosed housing. It can be customized with hydraulic or 12V/24V/48V electric motors, planetary gearboxes.



Features



1. Rotation 360 degrees

2. Connection of a driving motor from the left or right side

3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

4. Grease had been filled before factory

4. Simple installation and low maintenance

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping

8. High tilting torque, suitable for horizontal installation



Anti Backlash Solar Slew Drive For Horizontal Single Axis Solar Tracker 0



Worm Wheel Gear​ Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg
