VE9 Standard Worm Gear Solar Tracker Slew Drive 85000Nm

VE9 Standard Worm Gear Solar Tracker Slew Drive 85000Nm

  • VE9 Standard Worm Gear Solar Tracker Slew Drive 85000Nm
  • VE9 Standard Worm Gear Solar Tracker Slew Drive 85000Nm
VE9 Standard Worm Gear Solar Tracker Slew Drive 85000Nm
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: 9 inch
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~380/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Structure: Compact Gearbox Model: VE9
Gear Ratio: 61:1 Efficiency: 40%
Precise: ≤ 0.1 Driver: Electric Motor
Color: As Requested Holding Torque: 39000~85000 Nm
High Light:

VE9 Solar Tracker Slew Drive

,

85000Nm Solar Tracker Slew Drive

,

85000Nm slew drive for solar tracker





Standard Worm Gear Dimensions Solar Tracker Slew Drive For Solar Energy



Reduction Drive Gearbox Description



Hangtuo, located in Changzhou, China, only 30 mimutes by train from the Shanghai International airport. We have enrich and expert knowledge on designing, developing and manufacturing slewing drives. We have more than 10 years’ experience. Our team is specialized in researches and developments in that particular area. Our experience covers the fields of tracking technologies for photovoltaic systems, mechanical engineering, slewing drive technology.

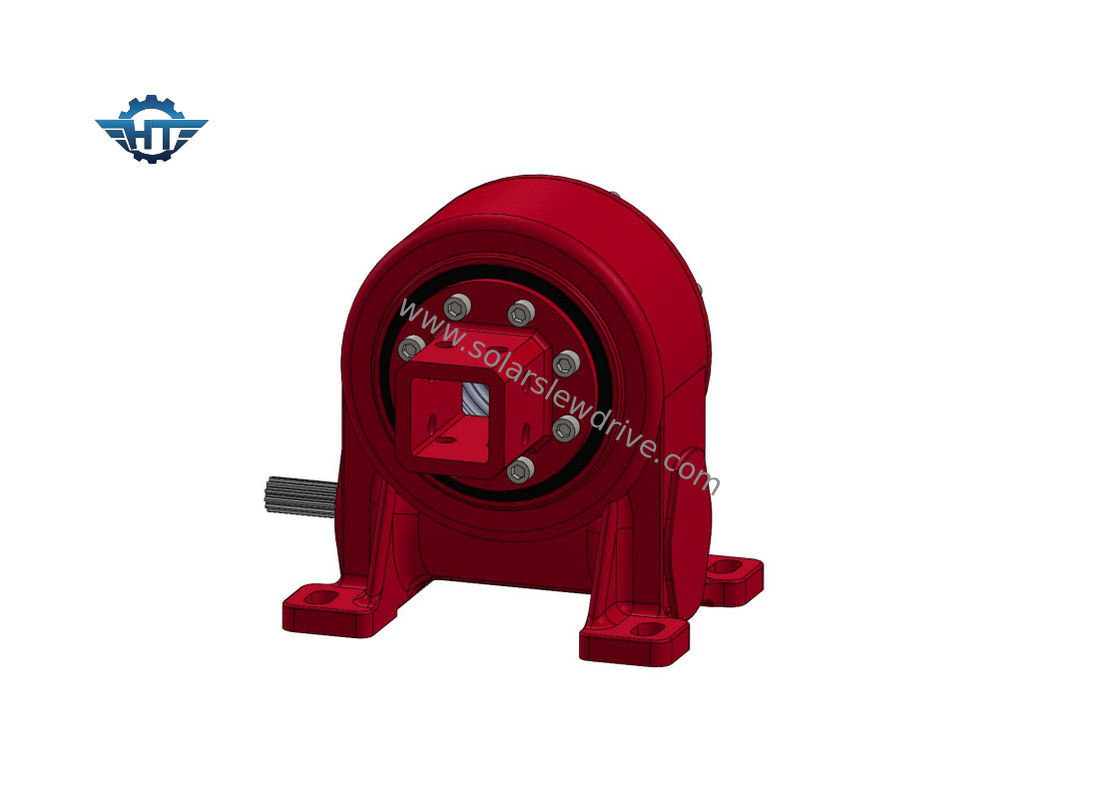

Picture of VE7 slewing drives

VE9 Standard Worm Gear Solar Tracker Slew Drive 85000Nm 0



Our Advantages



Quick Reaction Times

Long-term experience in intelligent-process control for mass production as well as in customer-oriented product development.



Product Advantage

Slewing Drive (Enclosed Type, Vertical Type, Dual Axis Type, Precision Type) Hourglass worm slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.



Stable Quality

Set up Critical Quality Inspection Points, Total 9 positions through the plant. We set up critical quality inspection points , make quality inspection instructions to control strictly in key process. We use high precision & measurement gauge calibration.



Testing

Advanced measurement device

Measurement should be calibrated, check and only qualified gauge can be used.



Technical Sheet of VE Series Slewing Drives



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



For further detailed product technical parameters, contact us for product catalog and detailed sales drawings.



Application



The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
