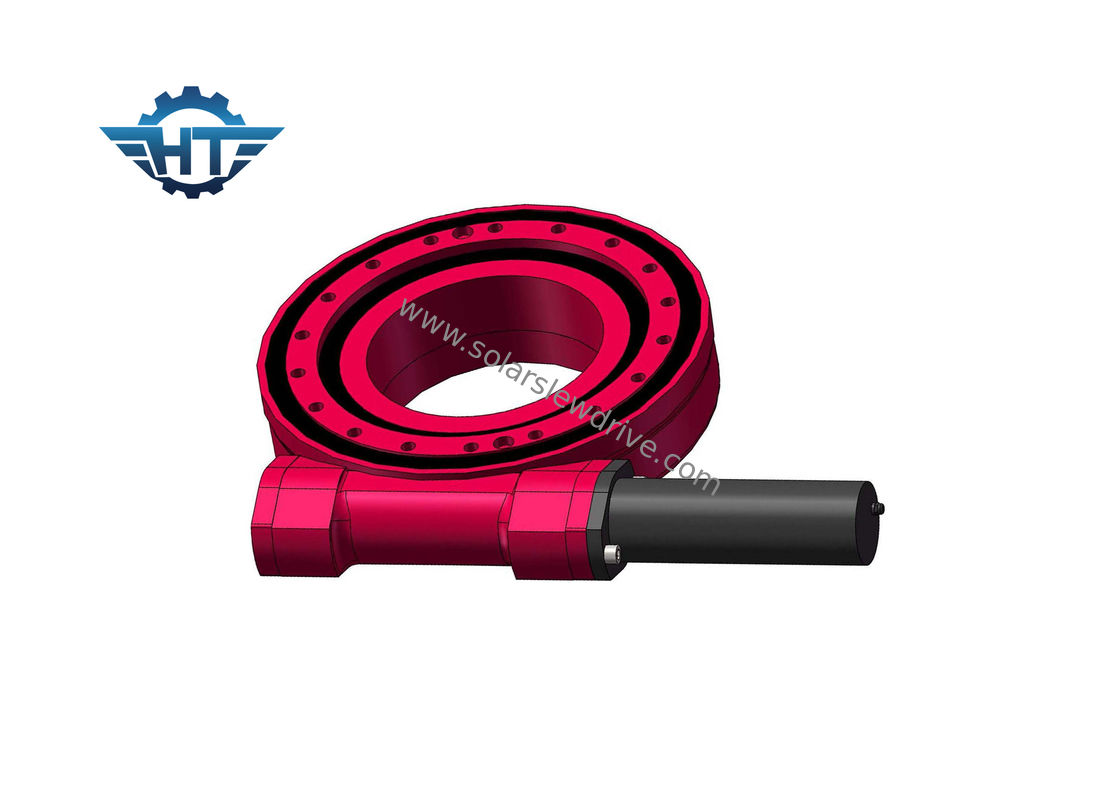

SE7 IP66 Slew Drive Gearbox, Third Stage Reducers With Low Speed And High Torque For PV Trackers
Description
Enclosed housing slewing drive mainly apply to the relatively high condition for high requirement for dust-proof,rain-proof and anti-corrosion occasion.Presion grade IP66.
Brand Name: Hangtuo
Model Number: SE5A-37MHD-24RC-REV.A
Material:42CrMo, 50Mn
Certificate:CE, ISO9001
Warranty:10 Years
Lifetime: 30 Years
Packing: Plywood package
How to Choose a Suitable Slew Drive
There are many types of slew drives, which can be selected taking into account the following factors.
1. Load capacity, direction and properties: The slew drive is suitable for bearing light loads, and roller bearings are suitable for heavy loads and impact loads. When the rolling bearing is subject to pure axial load, the thrust bearing is generally selected, and when the rolling bearing is subject to pure radial load, the deep groove ball bearing or short cylindrical roller bearing is generally selected, and when the rotary device is exposed to pure radial load, there is also a small axial load, you can choose deep groove ball bearing, angular contact ball bearing, tapered roller bearings and centering balls or centering roller bearings. When the axial load is large, the contact angle of the angular contact ball bearings and tapered roller bearings can be selected, or the use of centripetal bearings and thrust bearings combined, which is particularly suitable for extremely high axial loads or special requirements with large axial rigidity.
2. Allowed speed: For different driver types of slew drives, in general, bearings with small friction and low heating capacity are suitable for high speeds. The design should strive for rotary rolling bearings to work under conditions below their ultimate rotational speed.
3. Rigidity: When the bearings of the slew drive unit bear the load, the bearing ring and the contact place of the rolling body will produce elastic deformation, the deformation amount is proportional to the load, and its ratio determines the bearing rigidity size. The rigidity of the bearing can generally be improved by the pre-tightening of the bearing. In addition, in the bearing support design, considering the combination and arrangement of bearings can also improve the bearing support stiffness.
4. Tuning performance and installation error: After the bearing is loaded into the working position, poor installation and positioning will be caused by manufacturing errors. At this time, due to the shaft fishing and thermal expansion and other reasons, the bearing bear too much load, causing early damage. Automatic centering bearings can overcome defects caused by installation errors on their own and are therefore suitable for such uses.
5. Slew drive installation and disassembly: tapered roller bearings, roller bearings and tapered roller bearings, etc., belong to the inner and outer ring can be separated bearing types (that is, so-called separated bearings), easy to install and disassemble.
Performance Table of SE Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Application scope
Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
Our Services & Strength
1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System .
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.
