| Model Number: | SDE17 | Holding Torque: | 53040 Nm |
|---|---|---|---|
| Tilting Torque: | 67000 Nm | Output Torque: | 9460 Nm |
| Static Axial Load: | 142 KN | Static Radical Load: | 390 KN |
| Raw Material: | 50Mn, 42CrMo | Weight: | 320 Kg |
| Ratio: | 102:1 | Colour: | As Requested |
| High Light: | slewing ring drive,worm drive motor |
||

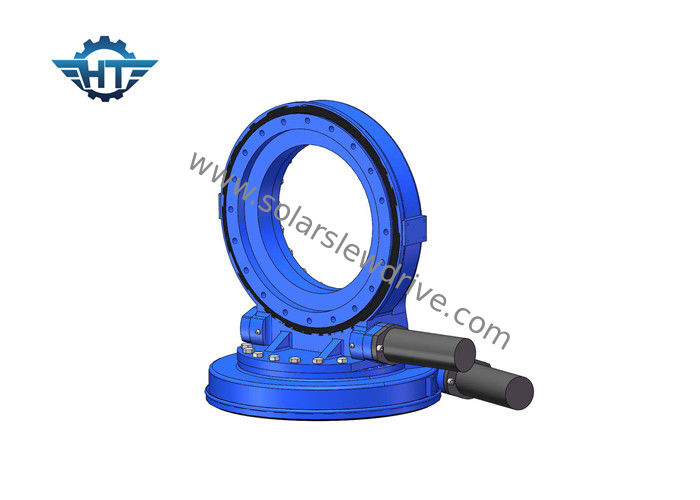

IP66 High Prevention Dual Axis Worm Gear Slew Drive With Envelop Worm For Solar Energy
Product Description
The slewing drive is a gearbox that can bear radial and axial loads safely at the same time and transmit a torque for rotating with a low speed. The rotation can be in a single axis, or in multiple axes together. Slewing drive is made by gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox.Our enclosed housing slewing drive consists of the housing, gear, hourglass worm, and other spare parts. Also we can provide electric motor or hydraulic motor to match with slewing drive.
Features
1. achieve clockwise and counterclockwise rotation
2. high IP rate of 66 grade to prevent the water and dust and is very suitable for used in outside
3. three types: SE, VE and SDE series slew drives, VE series are mostly applied in solar tracking system, parabolic concertrated power, while the SE series are mostly applied in construction machinery. The SDE series are dual axis slew drives, they can help the solar system to track the sun at any time and at any direaction.
Performace of SDE Series
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load(kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Application
Slewing drives are usually found in application such as: wind turbines, heavy load transporters, solar trackers, CSP, CPV, satellite antenna, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.
