Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 1190~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | Dual Axis |
|---|---|---|---|
| Feature: | Quick Installation | Motor: | 24 V |
| Application: | Biaxial Tracker | Origin: | China |
| Life Span: | 30 Years | Work Time: | 24 Hours |
| Highlight: | slewing ring drive,worm drive motor |
||

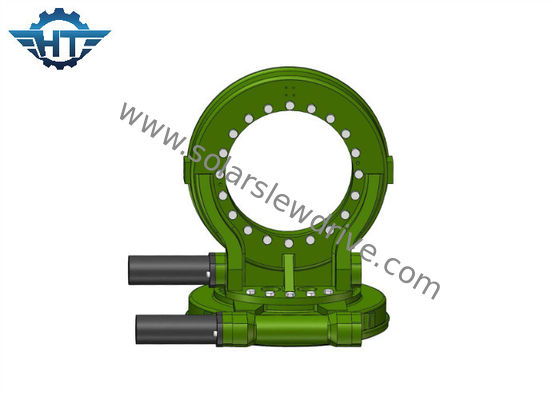

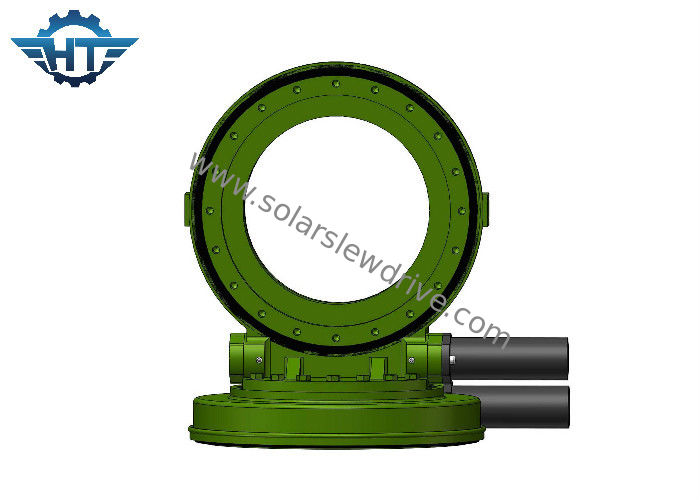

Biaxial Worm Slew Drive With 24VDC Planetary Motor For Dual Axis Solar Tracking System
Description
Slewing bearing is also called: Slewing ring bearing/turntable bearing/slewing ring etc. Slewing ring bearings can accommodate axial, radial and moment loads acting single or in combination and in any direction. They are not mounted in a housing or on a shaft, but directly to a seating surface. The inner and outer ring are supplied with mounting holes. Both rings may have integral gears. They are also referred to as slewing rings and tabletop bearings. Slewing ring bearing can perform oscillating (slewing) as well as rotating movements. They may be used without gears or with internal or external gears.
Parameters of SDE7
|
Usage |
Used for dual solar tracking system |
|
No. of axis |
Dual axis |
|
Size |
7 inch |
|
Certification |
CE/ISO |
|
Delivery date |
Within 15 days |
|
Output torque |
2000 N.m |
|
Tilting torque |
13500 N.m |
|
Back holding torque |
13200 N.m |
|
Gear Ratio |
57:1 |
|
Service life |
30 years |
|
Protection level |
IP66 |
| Self-locking | Yes |
| Efficiency | 40% |
| Weight | 21 kg |
Applications of Slewing Drives
Solar Energy, mining machine, construction equipment, port hoisting machine, port oil transfer equipment,
onshore and offshore crane, excavator,concrete machine, revolving grabbers and winches,
plastic and rubber machine, weave machine, logging industry machines, wind-power generation,
electronic power plant, water treatment machinery, drilling equipment and steering applications.
