Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE17" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 1190~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | SDE17 |
|---|---|---|---|
| Warranty: | 5 Years | OEM: | Available |
| Rotate Type: | Two Axis | Color: | Silver Grey |
| Installation Site: | Roof And Field | Feature: | Quick Installation |
| High Light: | slewing ring drive,worm drive motor |
||

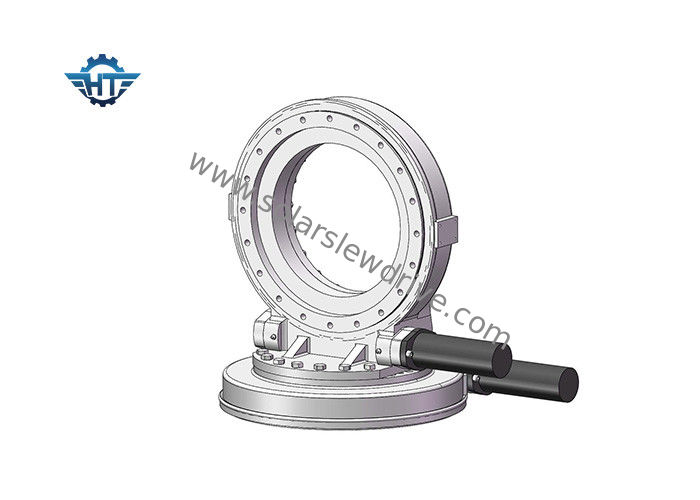

17 Inch Dual Axis Slew Drive With 24vdc Gear Motor For Dual Axis Solar Tracking System
Description
Slewing drive are widely used in the solar tracking systems, construction vehicles, port machinery and small wind turbines. Hangtuo is fully equipmented with all advanced machines for manufacturing, assembly, inspection, test processes and automatic cleaning and painting and powder coating lines.
Slewing drive is the combination of the slewing ring with the hourglass worm shaft, wich provides more tooth contact , increased drive torque and more smoothly rotation.
Parameters of SDE Series
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 705 |
Our Advantages
Our Services
1. MOQ: 1 piece
2. Experiences: more than 10 years experiences
3. Production: we assembled the slew drives in our own factory
4. Quality: All the products will under strict checking before leaving factory
