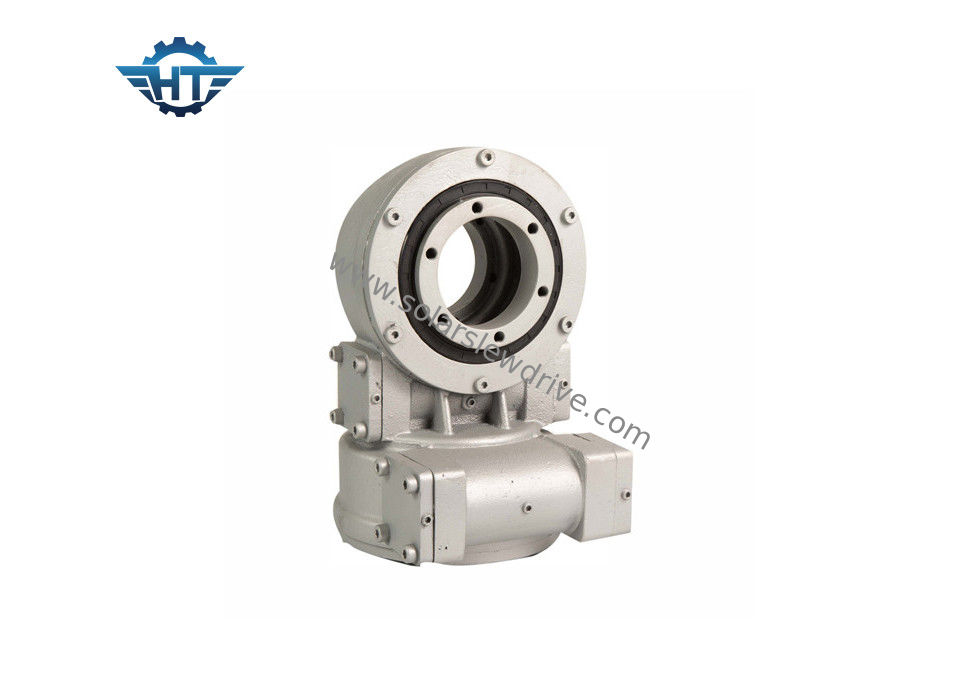

5 Inch Worm Gear Slew Drive With 24vdc Gear Motor , Solar Slew Drive CE Passed

5 Inch Worm Gear Slew Drive With 24vdc Gear Motor , Solar Slew Drive CE Passed

  • 5 Inch Worm Gear Slew Drive With 24vdc Gear Motor , Solar Slew Drive CE Passed
  • 5 Inch Worm Gear Slew Drive With 24vdc Gear Motor , Solar Slew Drive CE Passed
5 Inch Worm Gear Slew Drive With 24vdc Gear Motor , Solar Slew Drive CE Passed
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE5"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 416~456/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: SDE5
Warranty: 5 Years OEM: Available
Rotate Type: Two Axis Color: Silver Grey
Installation Site: Roof And Field Feature: Quick Installation
High Light:

slewing ring drive

,

worm drive motor



5 Inch Worm Gear Slew Drive With 24vdc Gear Motor For Dual Axis Solar Tracking System​



Description



The slew drives core components are double envelope worm, helical gear, they can simultaneously withstand axial forces, radial forces, and overturning moments. It's easy installation, almost free maintenance, have a greater IP rating, and self-locking.



Slewing drive are widely used in PV,CPV,STP solar tracking systems and construction applications including truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications.



Parameters of SDE Series



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Weight (kg)
3" 31:1 600 1500 5800 10 15 25
5" 37:1 800 6000 9200 16 27 34
7" 57:1 2000 7500 13200 34 58 56
9" 61:1 4300 16000 27200 60 130 92
12" 78:1 5800 25000 40560 77 190 160
14" 85:1 6750 48000 44200 110 230 224
17" 102:1 9460 67000 53040 142 390 320
21" 125:1 16000 89000 65000 337 640 492
25" 150:1 21450 112000 89000 476 950 705



Packaging and Shipping



Inner Packaging: anti-rust plastic film ; vacuum plastic bags.

Outer Packaging: hard carton; wooden case ; wood pallet.

Shipping Term: by express; by air; by land; by sea.



For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.



If in bulk order in the future, we recommend ship by sea.



Note:



Express: door to door, just need to pay the import tax if required by the custom.

By air or by sea: factory to destination airport/sea port, need pay destination fee charged by the airport(the destination fee is always charged by per B/L regardless of the package is big, small, heavy or light, in gerneral 200~400 USD per cargo) and import tax if required by the custom.

By train: sometimes the shipping price is the same as sea but taking less shipping time than sea, we will take this shipping way into consideration if the goods are in urgent need by our clients.



Our Services



1. MOQ: 1 piece, customers could buy one piece for testing

2. Experiences: we will share more than 10 years experiences and solutions for projects with our clients

3. Production: we assembled the slew drives in our own factory, we can control the quality and the lead time by ourselves.

4. Quality: All the products will under strict checking before leaving factory, checking items: outlook, the start torque, the current if attached with a gear motor, the backlash. If unfortunately happens the quality issues, our reactive time is in 24 hours, if caused by our side after investigating, we will change the parts asap with all the cost by us.
