Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE3" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 360~390/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | SDE3 | Gear Ratio: | 31:1 |
|---|---|---|---|
| Output Torque: | 600 Nm | Holding Torque: | 1500 Nm |
| Tilting Torque: | 5800 Nm | Efficiency: | 40% |
| Standard Color: | RAL 9006 | Color: | Requested |
| High Light: | slewing ring drive,worm drive motor |
||

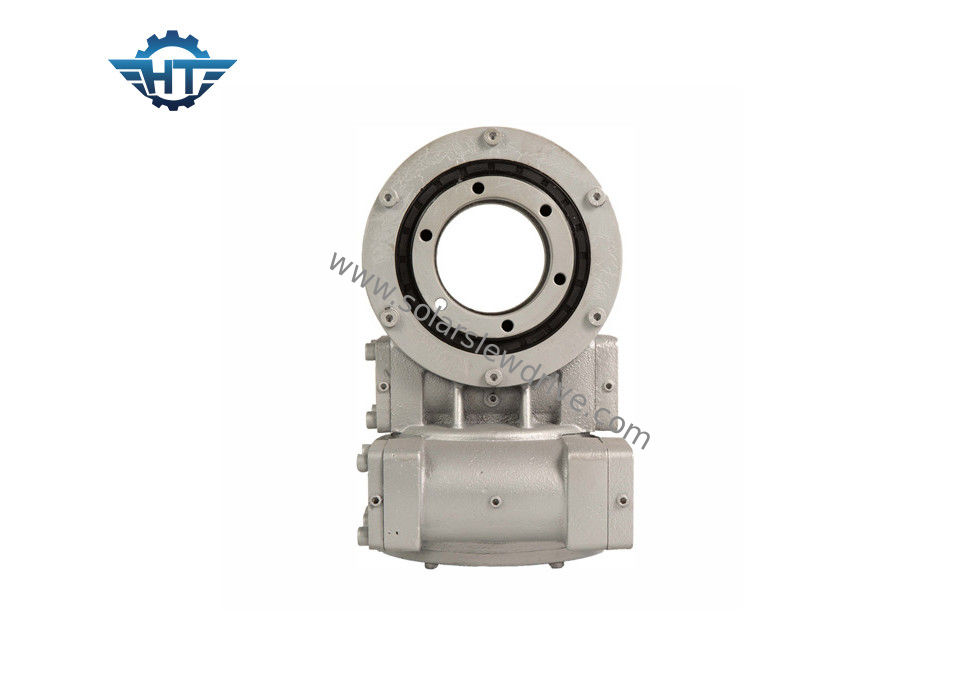

SDE3 Dual Axis Slew Drive With High Torque 12v Dc Motor For Solar Tracking System
Description
Slewing drive is a perfect motion control product for the application which requires rotational torque strength. The slew drive can apply for solar tracking system including single and dual axis solar tracking system, it is designed in solar photovoltaic panel rotation and improves power generation efficiency.
Performance of SDE Series
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Our Services
Hangtuo offers high-quality, custom-tailored slewing drives, worms and gears for your next project. Whether you need one slewing drive sample for testing or in bulk, we ensure you have the qualified components required to complete your project on time and within your budget.
If required, we can do the testing for you.
1. life-cycle testing
2. tilting torque testing
3. holding torque testing
4. precision testing
5. UV test
6. salt spray test
7. high-low temperature test
