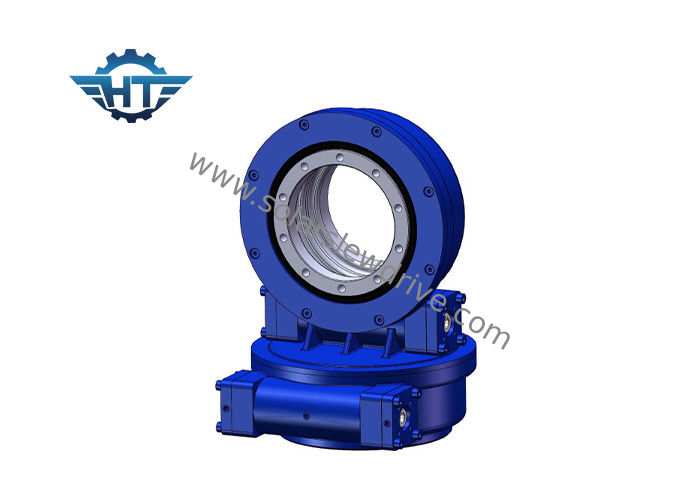

Small Size SDE3 Solar Tracker Drive With 24 VDC Planetary Gear Motor For Dual Axis Trackers

Small Size SDE3 Solar Tracker Drive With 24 VDC Planetary Gear Motor For Dual Axis Trackers

  • Small Size SDE3 Solar Tracker Drive With 24 VDC Planetary Gear Motor For Dual Axis Trackers
  • Small Size SDE3 Solar Tracker Drive With 24 VDC Planetary Gear Motor For Dual Axis Trackers
Small Size SDE3 Solar Tracker Drive With 24 VDC Planetary Gear Motor For Dual Axis Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE3"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: SDE3
Type: Worm And Wormwheel Warranty: 3 Years
Technical Support: Whole Life Application: Solar Tracking System
Ratio: 31:1 Life Time: 30 Years
Protection Level: IP66
High Light:

small slew drive


worm drive motor

Small Size SDE3 Solar Tracker Drive With 24 VDC Planetary Gear Motor For Dual Axis Trackers


We are offering The small size SDE3 slewing drive is use for the dual axis solar tracker with solar panels from 3-5 square meter.


Type: Slew bearing for solar tracking system
Brand Name : Hangtuo
Model Number : SDE3
Gear Ratio : 31:1


Description of slewing drive

Solar tracking system enclosed housing slew drive With tilting moment capacity.

Slewing drive’s mainly consists of a slewing bearing, a worm shaft&motors(AC,DC, hydraulic). It can also bear axial load, radial load and tilting moment.The main advantage is easily to install,maintain and save installation space.
SDE enclosed housing slew drive help power movement across industries and are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.

Enclosed housing slew drive provide load support and controlled rotational torque in both single and dual-axis solar trackers.Our in-house solar tracker is used for accelerated life cycle tests of applied torque, radial, and axial loads, and overturning movement. There is a special weighted cage structure so that we can mimic up to 120 square meter PV panel.

The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis, or in multiple axes together.Slewing drives are made by manufacturing gearing,bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox.

Slewing drive is widely applied in modular trailers, cranes, timber grab equipment,aerial working platform, solartracking systems wind power systems, etc.

slewing drive is suitable for high-latitude areas and the effciency of power generation will be increased over 35%,which significantly improve the effciency of solar power generation system.

For horizontal single-axis solar tracking system, the main shaft of solar panel will adjust the angle to precisely track the declination angle. This kind of slewing drive is only applied for low latitudes area.

By adopting slewing bearing as its core component, slewing drive can bear axial force, radial force and tilting moment simultaneously. Slewing drive is widely applied in solar tracking systems.

The solar tracking system is divided into horizontal single-axis solar tracking system, tilted single-axis tracker and dual axis solar tracking system.
The slewing drives which are used in solar tracking systems are mainly single axis (SE series), dual axis (SDE series) and vertical type (VE series). And the most common used models are SE3, SE5, SE7, SE9; SDE3, SDE7 , VE7, VE9.





Our SDE dual-axis slewing drives are assured for a 30-year field life time of precise 3D positioning. SDE drives create an efficient and reliable solution in a single drive. We qualify all of our components and raw materials using standards set by ISO 9001, CE certifications to maximize field life.




Our slew drives use patented hourglass worm technology to give maximum control and movement support. Our worm gears engage 5 to 11 teeth on the pitch line of the ring gear from the hourglass screw, which is higher tooth engagement than standard worms, giving the gearbox greater stability and strength. Learn more about hourglass technology.


Small Size SDE3 Solar Tracker Drive With 24 VDC Planetary Gear Motor For Dual Axis Trackers 0


How to choose the proper size of slewing drives?


Choosing a proper size of the slewing drives in order to avoid from not only performance lack or performance surplus is play an important role in achieving cost effective solutions.


Please give us the following information in order to select a suitable slewing drive:


1. the application

2. the output toque required. If you do not have a clear idea of that data, just tell us the load, for example, the weight of panels and the mounting brackets on our slewing drive.

3. the load dimensions and the biggest wind in your area in the past 10 years which are used to calculate if the drive we recommended could bear the maxium load when there comes the big wind.

4. the output speed you required which will help us to recommend the suitable motors for you.

5. other informations such as backlash, IP grade demand etc


Our dual axis slewing drives are listed below, for more detailed dimensions and parameters, please refer to our sales drawings.

SDE Model Performance Parameters
Model Rated Output Torque (N.m) Holding Torque (N.m) TiltingTorque (N.m) Axial Load (kN) Radial Load (kN) Ratio Effeciency Precision (degree) IP Working Temp.(℃) Self-locking Weight (kg)
3" 600 1500 5800 3.6 15 31:1 43% ≤0.1 66 -30~+120 Yes 25kg
5" 800 6000 9200 16 27 37:1 43% ≤0.1 66 -30~+120 Yes 34kg
7" 2000 13500 13200 34 58 57:1 43% ≤0.1 66 -30~+120 Yes 56kg
9" 4300 16000 27200 60 130 61:1 43% ≤0.1 66 -30~+120 Yes 92kg
12" 5800 25000 40560 77 190 78:1 43% ≤0.1 66 -30~+120 Yes 160 kg
14" 6750 48000 44200 110 230 85:1 43% ≤0.1 66 -30~+120 Yes 224kg
17" 9460 67000 53040 142 390 102:1 43% ≤0.1 66 -30~+120 Yes 320kg
21" 16000 89000 65000 337 640 125:1 43% ≤0.1 66 -30~+120 Yes 492kg
25" 21450 112000 89000 476 950 150:1 43% ≤0.1 66 -30~+120 Yes 705 kg
