50Mn / 42CrMo Material Dual Axis Slew Drive Holding Torque 13 KNm For Solar Tracker

50Mn / 42CrMo Material Dual Axis Slew Drive Holding Torque 13 KNm For Solar Tracker

  • 50Mn / 42CrMo Material Dual Axis Slew Drive Holding Torque 13 KNm For Solar Tracker
  • 50Mn / 42CrMo Material Dual Axis Slew Drive Holding Torque 13 KNm For Solar Tracker
50Mn / 42CrMo Material Dual Axis Slew Drive Holding Torque 13 KNm For Solar Tracker
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Type: Worm And Wormwheel
Life Time: 30 Years Application: Dual Axis Solar Tracker
Gear Ratio: 57 Enclosed Housing: Yes
Backlash: Less Than 0.1 Degree Effeciency: 40%
High Light:

slewing ring drive

,

small slew drive

50Mn / 42CrMo Material Dual Axis Slew Drive Holding Torque 13 KNm For Solar Tracker



Description

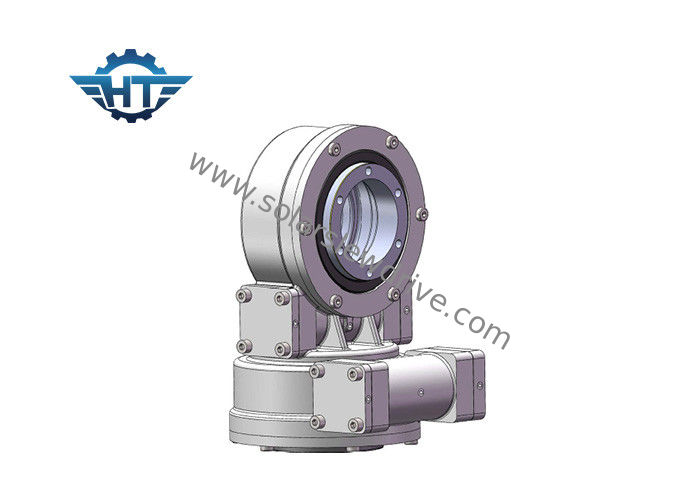

SDE7 Slewing Drive For Dual-axis Solar Tracker
Brand Name: HT
Model Number: SDE3A
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Output torque: 2000 N.m
Tilting moment torque: 13500 N,m
Holding torque: 13200 N.m
Axial rating: 34 KN
Radial rating: 58 KN
Gear Ratio: 57:1
Tracking Precision: ≤ 0.1°
Motor: 12V,24V, DC motor, 380V, 220V AC motor
Net Weight: 56 Kg
Delivery Time: Within 15 working days after order confirmed and payment received.


Advantages


The azimuth & Elevation combined and enclosed designing can improve the tracking precision and power generation efficiency.
FRB using combined designing achieved better rigidity, impact resistance stronger, able to withstand the harsh environment of the desert and others.



Performance


Slew drives use patented hourglass worm technology to give maximum control and movement support. Our worm gears engage 5 to 11 teeth on the pitch line of the ring gear from the hourglass screw, which is higher tooth engagement than standard worms, giving the gearbox greater stability and strength. Learn more about hourglass technology.



Applications


The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
SDE Dual-Axis Positioner Specifications



1) SDE series slewing drive widely used for relative rotation parts of the solar tracker.
2) Dual axis tracker of solar PV and solar

Reliability


SDE dual-axis slewing drives are assured for a 30-year field life of precise 3D positioning. SDE drives create an efficient and reliable solution in a single drive. We qualify all of our components and raw materials using standards set by ISO 9001, CE certifications to maximize field life.



50Mn / 42CrMo Material Dual Axis Slew Drive Holding Torque 13 KNm For Solar Tracker 0



SDE Series Technical Data



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705
