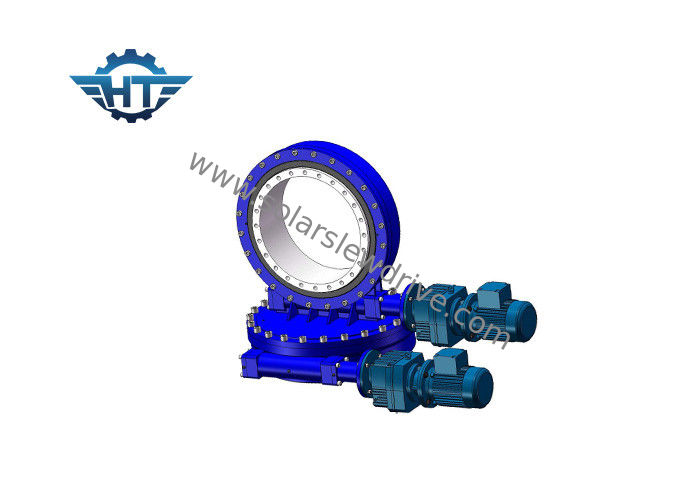

SDE12 Self Locking Slew Drive Gearbox With Stepper Motor For Concentrated Power Plant

SDE12 Self Locking Slew Drive Gearbox With Stepper Motor For Concentrated Power Plant

  • SDE12 Self Locking Slew Drive Gearbox With Stepper Motor For Concentrated Power Plant
  • SDE12 Self Locking Slew Drive Gearbox With Stepper Motor For Concentrated Power Plant
SDE12 Self Locking Slew Drive Gearbox With Stepper Motor For Concentrated Power Plant
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model Number: SDE12 Material: 50Mn, 42CrMo
Type: Worm And Wormwheel Life Time: 30 Years
OEM: Available Application: Solar Tracking System
Ratio: 78 Enclosed Housing: Yes
High Light:

slewing ring drive

,

small slew drive

SDE12 Self Locking Slew Drive Gearbox With Stepper Motor For Concentrated Power Plant



Description



Dual Axis Slew Drive
The most common slewing drive application for the dual axis slewing drives is dual axis solar trackers. The dual axis tracking system is a kind of power unit that can keep the solar panel facing the sun at any time and make the solar light irradiate the solar panel vertically at any time. Dual axis slew ring drive can improve the tracking precision and power generation efficiency which means the dual axis slew drive are able to create an efficient and reliable solution in a single drive. The dual axis slew drives for CPV can be mounted horizontally, vertically, or on a combination of multiple axes.



Characteristics & Advantages

1. High precision to let the system fully automatic tracking in a higher precision manner
2. To achieve approx 45% more power output than fixed mounting system
3. Easy installation and handling
4. easy
maintenance


Application Areas

Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.



Slewing drive applied in dual axis solar tracking system



SDE12 Self Locking Slew Drive Gearbox With Stepper Motor For Concentrated Power Plant 0



How to choose the proper size of slewing drives?



Choosing a proper size of the slewing drives in order to avoid from not only performance lack or performance surplus is play an important role in achieving cost effective solutions.



Please give us the following information in order to select a suitable slewing drive:



1. the application

2. the output toque required. If you do not have a clear idea of that data, just tell us the load, for example, the weight of panels and the mounting brackets on our slewing drive.

3. the load dimensions and the biggest wind in your area in the past 10 years which are used to calculate if the drive we recommended could bear the maxium load when there comes the big wind.

4. the output speed you required which will help us to recommend the suitable motors for you.

5. other informations such as backlash, IP grade demand etc



Dual axis slew drive parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705
