Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE3" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | 50Mn, 42CrMo, QT | Model: | SDE/VE |
|---|---|---|---|
| Outside Diameter: | 3-25 Inch | Bore Size: | 100-800mm |
| Gear Options: | External Gears | Warranty: | 3 Years |
| OEM: | Available | Rotating Type: | Double Axis |
| High Light: | small slew drive,worm drive motor |
||

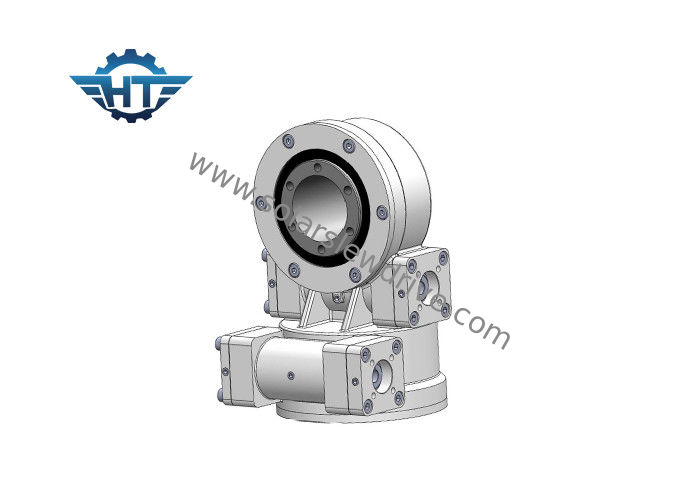

High Precision SDE/VE Model Dual Axis Slew Drive With Gear Motors For Dish Or Satellite
Top quality dual axis solar dish tracker slewing drive
1) Higher output torque and holding load
2)Top tracking precision
3)Strong corrosion resistance and sealing effective
The dish tracker consist usually of stepper motors to drive and aim the dish, gyroscopes to detect changes in position while the vehicle is in motion, a parabolic reflector, low-noise block converter, and control unit.
The slew drives is a key part of a stable and precise dish trackers
Key features
1. stable
2. high precision
3. excellent performance
Our dual axis slewing drives are listed below, for more detailed dimensions and parameters, please refer to our sales drawings.
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
