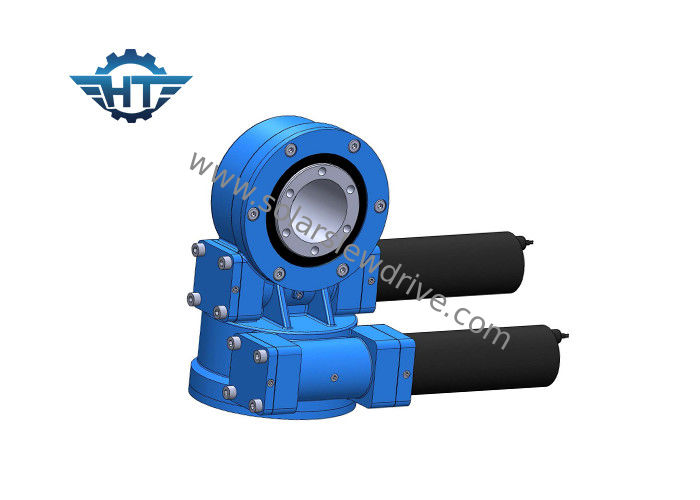

Low Rotation Speed SDE 3 Worm Gear Solar Slew Drive For PV / CSP / CPV Solar Plant

Low Rotation Speed SDE 3 Worm Gear Solar Slew Drive For PV / CSP / CPV Solar Plant

  • Low Rotation Speed SDE 3 Worm Gear Solar Slew Drive For PV / CSP / CPV Solar Plant
Low Rotation Speed SDE 3 Worm Gear Solar Slew Drive For PV / CSP / CPV Solar Plant
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE3"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo, QT Model: SDE3
Outside Diameter: 3-25 Inch Bore Size: 100-800mm
Gear Options: External Gears Warranty: 3 Years
OEM: Available Rotating Type: Double Axis
High Light:

slewing ring drive

,

worm drive motor

Low Rotation Speed SDE 3 Worm Gear Solar Slew Drive For PV / CSP / CPV Solar Plant

Hangtuo slewing drives can be used for solar tracking system, solar dish, PV, CPV ,CSP, wind turbine and satellite dish.

Key features

1. Those products are designed for long life, working in hard environment conditions.
2. Various sizes available, including customized.
3. Easy to installation and product warranty.

How does it helped the solar tracking system work:

Low Rotation Speed SDE 3 Worm Gear Solar Slew Drive For PV / CSP / CPV Solar Plant 0


Technical Data


ModelRatioRated Output Torque (N.m)Tilting Torque (N.m)Holding Torque (N.m)Axial Load (kN)Radial Load (kN)EfficiencyPrecision (°)Self-lockingWeight (kg)
3"31:160015005800101540%≤0.1Yes25
5"37:180060009200162740%≤0.1Yes34
7"57:12000750013200345840%≤0.1Yes56
9"61:1430016000272006013040%≤0.1Yes92
12"78:1580025000405607719040%≤0.1Yes160
14"85:16750480004420011023040%≤0.1Yes224
17"102:19460670005304014239040%≤0.1Yes320
21"125:116000890006500033764040%≤0.1Yes492
25"150:1214501120008900047695040%≤0.1Yes705


Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.

Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
