Custom Size SDE7 Slewing Drive Reducer For Satellite Antenna Dish And Dual Axis Trackers

Custom Size SDE7 Slewing Drive Reducer For Satellite Antenna Dish And Dual Axis Trackers

  • Custom Size SDE7 Slewing Drive Reducer For Satellite Antenna Dish And Dual Axis Trackers
  • Custom Size SDE7 Slewing Drive Reducer For Satellite Antenna Dish And Dual Axis Trackers
Custom Size SDE7 Slewing Drive Reducer For Satellite Antenna Dish And Dual Axis Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: SDE7
Gear Ratio: 57:1 Output Torque: 0.8 KNm
Holding Torque: 6 KNm Tilting Torque: 9.2 KNm
Place Of Origin: China Brand Name: Hangtuo
High Light:

small slew drive

,

worm drive motor

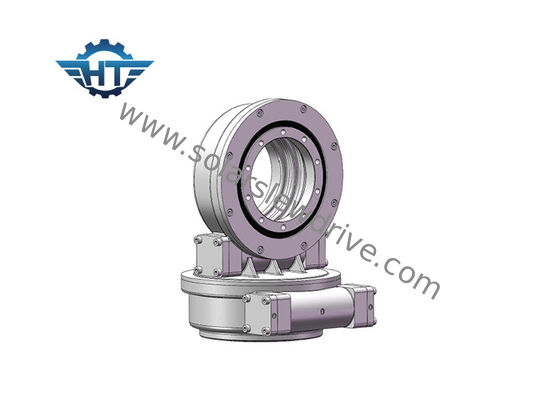

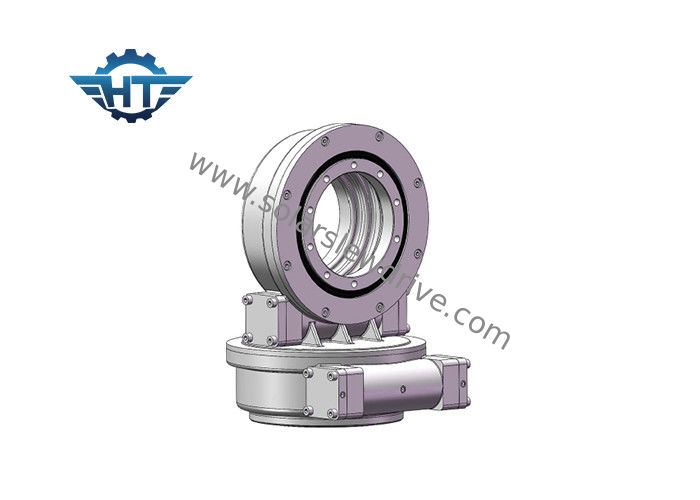

Custom Size SDE7 Slewing Drive Reducer For Satellite Antenna Dish And Dual Axis Trackers

Description


Our SDE series slewing drive mainly used for PV, STP, CSP solar tracking systems.



Our other types of slewing drives are widely used for construction applications, such as truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications, heavy load transporters, bridge inspection equipment, telescopic working platform, basket rotator requirements, yacht crane, cement mixer, excavator, etc. We can also provide multiple size of slewing drive and slewing berarings, hydraulic motor & DC Motor to match with slewing drives. Products have been exported to all over the world.



Custom Size SDE7 Slewing Drive Reducer For Satellite Antenna Dish And Dual Axis Trackers 0



Features



1. Strong overturning moment based on slewing ring

2. Adopt enveloping worm drive

3. Drive larger load for using multi tooth contact

4. Better static self-locking function



Installation Instructions



Horizontal installation & Vertical installation, see below picture.

Tow single sleiwng drives can achieve dual axis slewing drive systems.

One dual axis slewing drive can achieve dual axis slewing drive systems.

One slewing drive with one linear actuator can also achieve dual axis slewing drives.



Performance Chart of SDE Slewing Drive



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
