Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE7" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | SDE7" |
|---|---|---|---|
| Gear Ratio: | 57:1 | Holding Torque: | 13200 Nm |
| Tilting Torque: | 7500Nm | Efficiency: | 40% |
| Axial Load: | 34 KN | Radial Load: | 58 KN |
| High Light: | slewing ring drive,worm drive motor |
||

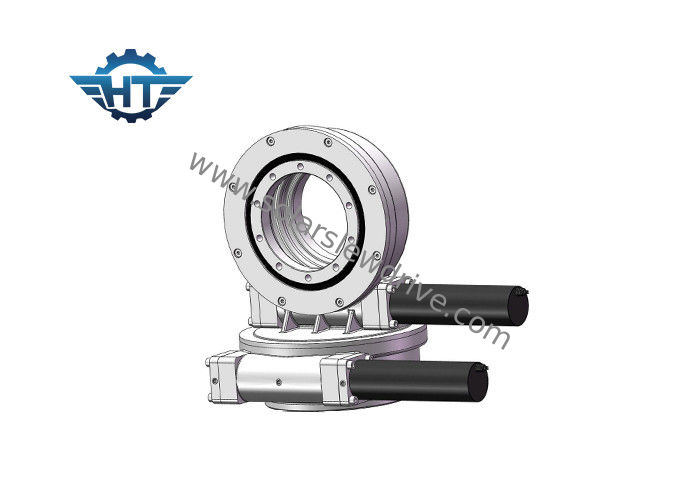

Top Precision Low Speed Dual Axis Slew Drive IP66 For PV Tracking System And CSP Station
Description
Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing bearing. If the qorque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be overturned.
Radial load: Load vertical to the axis of slewing bearing
Axial load: Load parallel to the axis of slewing bearing
Holding torque:It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque.
Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.
Features
1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
Technical Data
| Product Name | SDE7 Slewing drives with 43Nm gear motors |
| Output Torque | 2000 N.m |
| Tilting Moment Torque | 7500 N.m |
| Holding Torque | 13200 N.m |
| Static Axial Rating | 34 kN |
| Static Radial Rating | 58kN |
| Motor Alternatives | 380V/220V AC Motor ; Stepper Motor ; Brushless Motor |
| Products Style | Dual Axis, CPV; Solar Dish; Parabolic; Heliostat |
| Application Feature | Solar Tracking System, Industrial Machinery |
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
