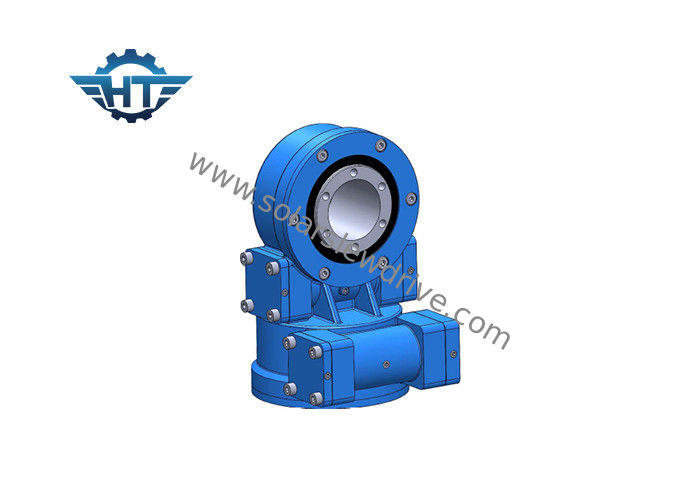

SDE3 Dual With Motor Dual Axis Slew Drive Unit For 6 PCS Solar Panels Solar Tracking System

SDE3 Dual With Motor Dual Axis Slew Drive Unit For 6 PCS Solar Panels Solar Tracking System

  • SDE3 Dual With Motor Dual Axis Slew Drive Unit For 6 PCS Solar Panels Solar Tracking System
  • SDE3 Dual With Motor Dual Axis Slew Drive Unit For 6 PCS Solar Panels Solar Tracking System
SDE3 Dual With Motor Dual Axis Slew Drive Unit For 6 PCS Solar Panels Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE3"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo, QT Gear Ratio: 31:1
Rated Output Torque: 600 Nm Holding Torque: 1500 Nm
Tilting Torque: 5800 Nm Standard Color: RAL 9006
Backlash: Less Than 0.1 Degree Rotating Type: Double Axis
High Light:

small slew drive

,

worm drive motor

SDE3 Dual With Motor Dual Axis Slew Drive Unit For 6 PCS Solar Panels Solar Tracking System



Description



Slew drives are used for concurrent transmission of axial and radial forces as well as transmission of tilting moments. Slew drives consist of a ball or roller slewing ring, hydraulic or electric drives, and a completely enclosed housing. Series SE slew drives are designed with worm gear.



Features



1. High backholding torque to improve the solar tracking system's safety

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function



Dual axis slewing drives are used in dual axis solar trackers, heliostats, concentrated photovoltaics (CPV), and satellite antenna.



Technical Data Of Dual Axis Slewing Drives



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.



Applicatons



slewing drive for dual axis solar tracking system
