Dual Axis Slew Drive
Created with Pixso. 3 Inch Solar Use Dual Axis Slew Drive With 12VDC Stepper Motor For Heliostat CSP

3 Inch Solar Use Dual Axis Slew Drive With 12VDC Stepper Motor For Heliostat CSP

Brand Name: HangTuo
Model Number: SDE3
MOQ: 1 piece
Price: USD 100~398/ pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Material:
42CrMo
Model:
SDE3
Gear Ratio:
31:1
Rated Output Torque:
600 Nm
Holding Torque:
1500 Nm
Tilting Torque:
5800 Nm
Efficiency:
40%
Standard Color:
RAL9006
Backlash:
<0.1°
Axis:
Dual Axis
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

slewing ring drive

,

worm drive motor

Product Description

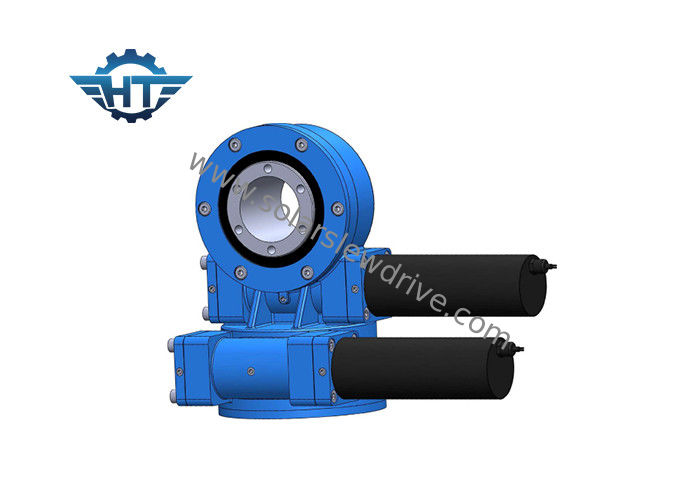

3 Inch Solar Use Dual Axis Slew Drive With 12VDC Stepper Motor For Heliostat CSP



Description



Dual axis slewing drives are used in dual axis solar trackers, heliostats, concentrated photovoltaics (CPV), and satellite antenna.



By applying a dual axis slewing drives on a solar system, the panels will always be oriented towards the sun, no matter the season, time of the day or latitude of the regions. It can let the project owner gain more electricity capacity up to 40%. And thus more yield.



Features



1. High backholding torque to improve the solar tracking system's safety

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function



Technical Data



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.



Applicatons



Single axis solar tracking tracking system.
