Dual Axis Slew Drive
Created with Pixso. High Torque Worm Gear Slew Drive CE Certified Gear Ratio 57 / 1 For PV Solar Trackers

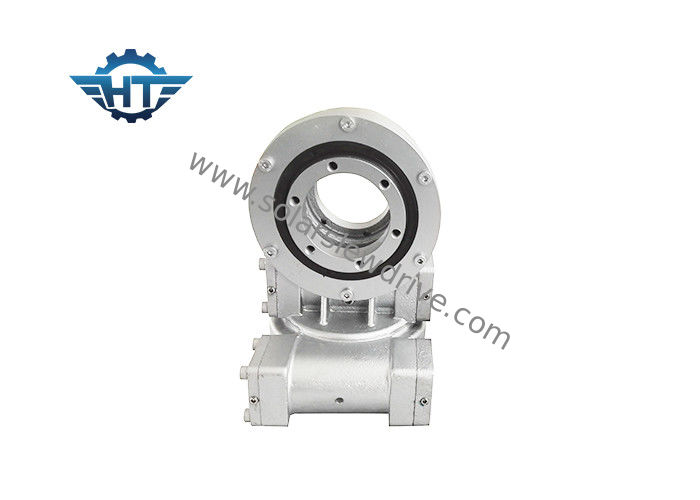

High Torque Worm Gear Slew Drive CE Certified Gear Ratio 57 / 1 For PV Solar Trackers

Brand Name: HangTuo
Model Number: SDE7"
MOQ: 1 piece
Price: USD 280~504 / pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Material:
50Mn, 42CrMo
Model:
SDE7"
Gear Ratio:
57:1
Rated Output Torque:
2000 Nm
Holding Torque:
13200 Nm
Tilting Torque:
7500 Nm
Efficiency:
40%
Standard Color:
RAL 9006
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

small slew drive

,

worm drive motor

Product Description
High Torque Worm Gear Slew Drive CE Certified Gear Ratio 57 / 1 For PV Solar Trackers

Product Description


The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new rotary drive has features of easy installation, easy maintenance and higher IP grade.



Slewing drive are widely used in PV,CPV,STP solar tracking systems and construction applications including truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications.



Features



1. High backholding torque to improve the solar tracking system's safety

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function



Technical Data



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.



Applicatons



High Torque Worm Gear Slew Drive CE Certified Gear Ratio 57 / 1 For PV Solar Trackers 0



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
