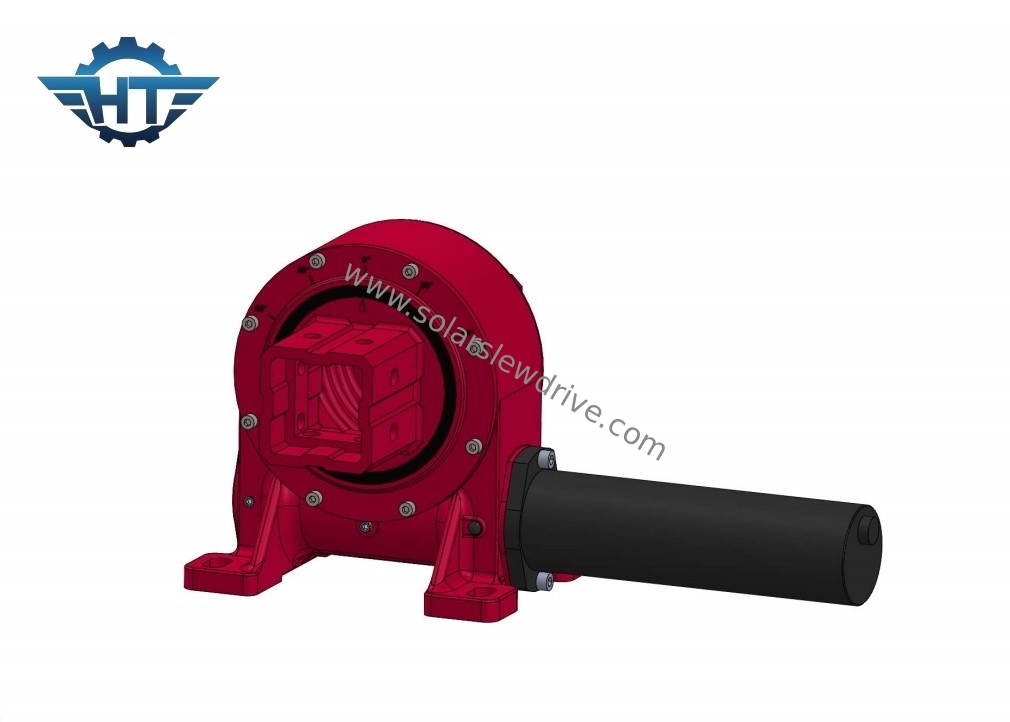

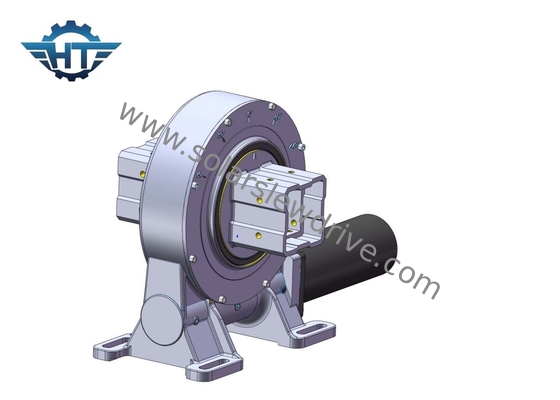

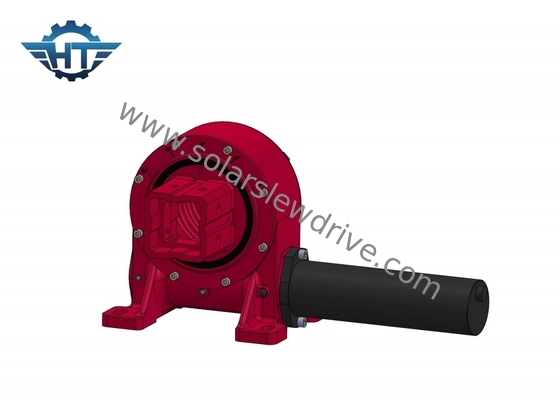

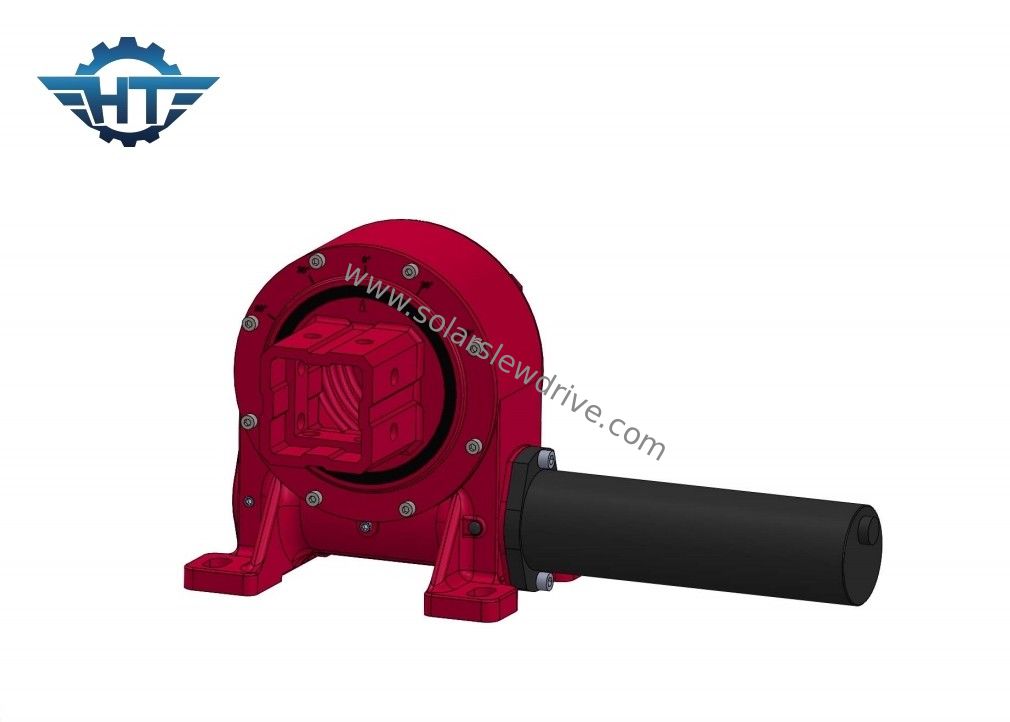

Single Axis Slew Drive for Solar Tracking System

Product Description:

One of the key features of this product is its self-locking ability. This means that it can hold its position without the need for an external brake or locking mechanism. This is especially useful for solar tracking, as it ensures that the solar panels remain in the desired position, even in high wind conditions.

The Slew Drive Gearbox has a static radial load capacity of 100 kN, making it capable of handling heavy loads. It also has a tilting moment torque of 20,000 Nm, ensuring that it can maintain stability even when subjected to large forces. Additionally, it has a dynamic axial load capacity of 100 kN, making it suitable for applications where axial loads are present.

This product is a worm gear slew drive, meaning that it uses a worm gear to drive a large gear. This design provides high torque and precision movement, making it ideal for solar tracking applications. The worm gear also provides a high gear ratio, allowing for precise positioning of the solar panels.

Overall, the Slew Drive Gearbox is a top-of-the-line product that is ideal for solar tracking applications. Its self-locking ability, high load capacity, and precision movement make it an excellent choice for solar trackers.

Features:

• Product Name: Slew Drive Gearbox
• Static Axial Load: 200 kN
• Slewing Speed: 0.2 rpm
• Static Radial Load: 100 kN
• Ratio: 62:1
• Application: Solar Tracker
• Keywords: worm slew drive, slew drive for solar tracking system, slew drive for solar tracker

Technical Parameters:

Applications:

The gearbox features a worm gear slew drive, which is known for its high efficiency and low maintenance requirements. The worm gear design provides a large reduction ratio, which allows for precise tracking and positioning of solar panels. The gearbox also has a tracking precision of 0.01°, which ensures that the solar panels are always positioned at the optimal angle to receive maximum sunlight.

The Slew Drive Gearbox is ideal for single-axis solar trackers, which are commonly used in residential, commercial, and industrial solar projects. The gearbox can be used in a wide range of applications, including rooftop solar installations, solar farms, and solar-powered water pumping systems.

The gearbox is designed to withstand harsh environmental conditions, such as extreme temperatures, high winds, and heavy snow loads. Its rugged construction and sealed design ensure that it can operate reliably in even the toughest conditions.

Whether you are a solar panel manufacturer or a solar project developer, the Slew Drive Gearbox is the perfect choice for your solar tracking needs. Its high efficiency, precision, and reliability make it a must-have component for any solar project.

Support and Services:

1. Installation guidance and support to ensure correct and safe installation of the product.

2. Troubleshooting support to help identify and resolve any issues that may arise during operation.

3. Maintenance and repair services to keep the product in good condition and extend its lifespan.

4. Customization services to meet specific design requirements and application needs.

Our team of experienced technicians and engineers are dedicated to providing you with the highest level of support and service for your Slew Drive Gearbox product.

Packing and Shipping:

Product Packaging:

• Each Slew Drive Gearbox will be packed in a sturdy corrugated cardboard box.
• The gearbox will be wrapped in bubble wrap to provide extra cushioning during transportation.
• A user manual and installation guide will be included inside the box.

Shipping:

• Shipping will be done via a reputable courier service.
• Customers can choose between standard or expedited shipping options.
• Tracking information will be provided to customers once their order has been shipped.
• Orders will be shipped out within 1-2 business days of receiving payment.

FAQ:

A: A Slew Drive Gearbox is a gear system that is integrated with a housing and motor, used to rotate a large load around a fixed axis.

A: Slew Drive Gearboxes are primarily used in solar trackers, wind turbines, heavy-duty equipment, and robotics.

A: Slew Drive Gearboxes provide high precision, high torque, and smooth rotation with minimal backlash. They are also compact and easy to install, reducing overall system cost.

A: The maximum load capacity of the Slew Drive Gearbox depends on the size and model, ranging from a few hundred kilograms to several tons.

A: The warranty period for the Slew Drive Gearbox is 12 months from the date of delivery, covering any manufacturing defects or malfunctions.
