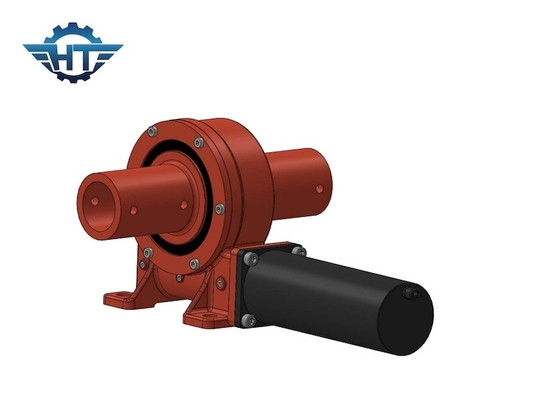

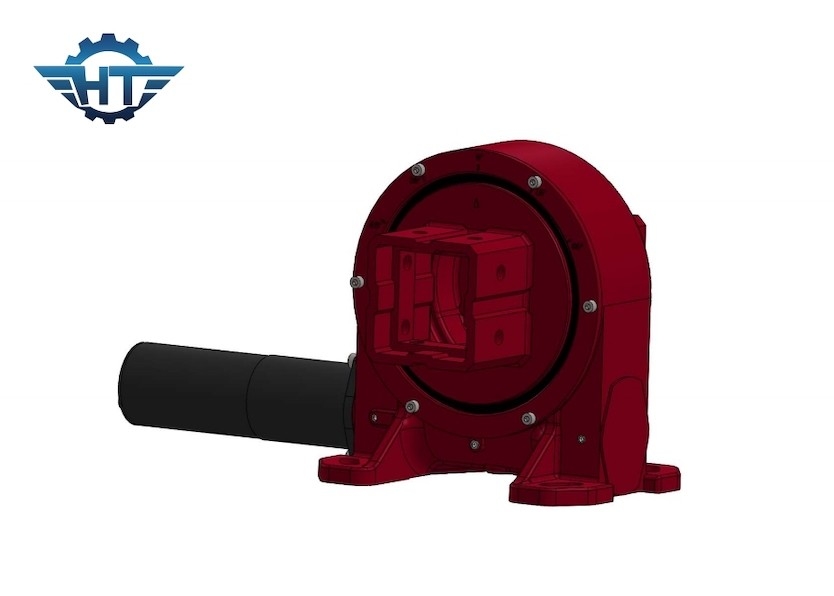

Single Axis Slew Drive Gearbox for Vertical Mounting Solar Tracker

Single Axis Slew Drive Gearbox for Vertical Mounting Solar Tracker

  • Single Axis Slew Drive Gearbox for Vertical Mounting Solar Tracker
  • Single Axis Slew Drive Gearbox for Vertical Mounting Solar Tracker
Single Axis Slew Drive Gearbox for Vertical Mounting Solar Tracker
Product Details:
Contact Now
Detailed Product Description
Static Radial Load: 100 KN Ratio: 62:1
Maximum Output Torque: 10000 Nm Static Axial Load: 200 KN
Slewing Speed: 0.2 Rpm Dynamic Axial Load: 100 KN
Tilting Moment Torque: 20000 Nm Dynamic Radial Load: 50 KN
High Light:

solar tracker Slew Drive Gearbox

,

vertical mounted Slew Drive Gearbox

,

solar tracker Slew Drive Gearbox vertical mounted

Product Description:

The Worm Slew Drive Gearbox is engineered to withstand static axial load of up to 200 kN, making it a robust and durable choice for heavy-duty applications. Additionally, it boasts an impressive static radial load capacity of 100 kN, ensuring smooth and efficient operation even in the toughest environments.

Our Worm Slew Drive Gearbox is built with high-quality materials and features a protection level of IP66, providing outstanding resistance against dust, water, and other harmful elements. This makes it an ideal choice for outdoor applications such as solar tracking systems.

The Worm Slew Drive Gearbox is a single-axis drive type, making it easy to install and operate. It delivers exceptional performance and precision, ensuring that your solar tracking system operates smoothly and efficiently.

With our Worm Slew Drive Gearbox, you can be sure that you are getting a high-quality and reliable product that is built to last. Whether you need a worm drive slew ring for your solar tracking system or other heavy-duty applications, our product is the perfect choice. So why wait? Order your Worm Slew Drive Gearbox today and experience the difference in performance and reliability!


Features:

  • Product Name: Slew Drive Gearbox
  • Static Axial Load: 200 kN
  • Drive Type: Single Axis
  • Application: Solar Tracker
  • Tilting Moment Torque: 20000 Nm
  • Ratio: 62:1
  • Keywords: worm slew drive, slew drive for solar tracker

Technical Parameters:

Tilting Moment Torque 20000 Nm
Gear Type Slew Drive (worm drive slew ring)
Static Axial Load 200 kN
Self-Locking Yes (worm slew drive)
Ratio 62:1
Maximum Output Torque 10000 Nm
Drive Type Single Axis (worm drive slew ring)
Static Radial Load 100 kN
Dynamic Radial Load 50 kN
Slewing Speed 0.2 rpm (worm drive slew ring)

Applications:

This gearbox features a worm gear slew drive, which allows for precise and smooth movement in both directions. The single axis drive type ensures that the gearbox is easy to install and maintain, while the tilting moment torque of 20000 Nm makes it suitable for a wide range of applications.

One of the primary applications of the Slew Drive Gearbox is in solar tracker systems. These systems require precise and smooth movement to track the movement of the sun throughout the day. The Slew Drive Gearbox is ideal for this application, as it provides the necessary torque and load capacity to ensure smooth and accurate movement.

In addition to solar tracker systems, the Slew Drive Gearbox is also suitable for a range of other applications, such as heavy equipment, cranes, and construction machinery. Its high load capacity and precise movement make it an ideal component for these types of applications.

Another advantage of the Slew Drive Gearbox is its high level of protection. With an IP66 protection level, this gearbox is resistant to dust, water, and other contaminants, making it suitable for use in harsh environments.

In summary, the Slew Drive Gearbox is a versatile and reliable component that is ideal for a range of industrial and commercial applications. Whether you need a worm drive slew ring for solar tracker systems or a high-load gearbox for heavy equipment, the Slew Drive Gearbox is an excellent choice.


Support and Services:

The Slew Drive Gearbox product provides technical support and services to help customers with any issues they may encounter. Our team of experts is available to provide guidance on installation, maintenance, and troubleshooting to ensure optimal performance of the product. In addition, we offer a variety of services such as repair and replacement of damaged parts, upgrades to enhance performance, and customization to meet specific requirements. Our focus is on providing timely and effective solutions to ensure customer satisfaction and minimize downtime.


Packing and Shipping:

Product Packaging:

The slew drive gearbox will be packaged securely in a strong cardboard box with ample padding to ensure protection during shipping. The box will be clearly labeled with the product name and any necessary handling instructions.

Shipping:

The gearbox will be shipped via a reputable courier service to ensure timely and safe delivery. Shipping costs will be calculated based on the destination and weight of the package, and will be added to the total cost of the order. Customers will receive a tracking number to monitor the progress of their shipment.


FAQ:

A: A Slew Drive Gearbox is a type of gearbox that is designed to handle high loads and axial and radial forces while also allowing for rotational movement. It is commonly used in applications such as solar trackers, cranes, and wind turbines.

Q: What are the benefits of using a Slew Drive Gearbox?

A: The benefits of using a Slew Drive Gearbox include its ability to handle high loads, its compact size, and its ability to provide smooth and precise rotational movement. It also requires minimal maintenance and has a long lifespan.

Q: What is the maximum load capacity of your Slew Drive Gearbox?

A: Our Slew Drive Gearbox has a maximum load capacity of [insert load capacity here].

Q: What is the warranty on your Slew Drive Gearbox?

A: Our Slew Drive Gearbox comes with a [insert warranty length here] warranty against defects in materials and workmanship.

Q: Can your Slew Drive Gearbox be customized to meet my specific requirements?

A: Yes, we can customize our Slew Drive Gearbox to meet your specific requirements. Please contact us to discuss your needs and we will be happy to provide a solution that meets your needs.
