Worm Geared Hydraulic Slewing Drive For High Torque Construction Machinery

Worm Geared Hydraulic Slewing Drive For High Torque Construction Machinery

  • Worm Geared Hydraulic Slewing Drive For High Torque Construction Machinery
  • Worm Geared Hydraulic Slewing Drive For High Torque Construction Machinery
Worm Geared Hydraulic Slewing Drive For High Torque Construction Machinery
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE5"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Gear Ratio: 37:1 Type: Enclosed
Application: High Torque Construction Machinery Driver: Hydraulic Motor
IP Grade: IP66 Color: As Requested
Effciency: 40% Backlash: 0.1°
High Light:

Worm Geared Hydraulic Slewing Drive

,

Hydraulic Slewing Drive For Construction Machine

,

High Torque Hydraulic Slewing Drive

Worm Geared Hydraulic Slewing Drive For High Torque Construction Machinery



Worm Geared Hydraulic Slewing Drive Description

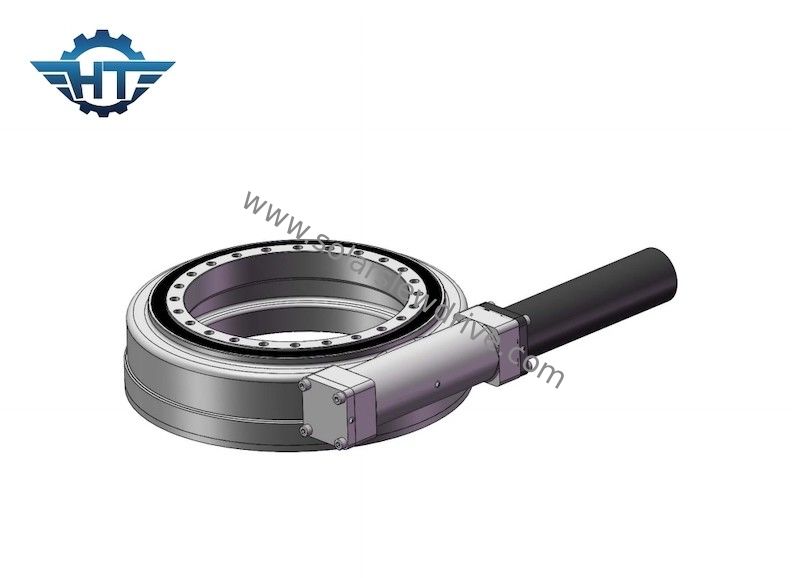

In the industry, there are many models of rotary drives with different series. The SE series is a common category. This range of slewing drives generally features a low cost enclosed design with lip seals, slewing ring assemblies, 360-degree rotation, and a self-locking gear set. Select models feature a dual worm gear design for increased torque capability. Furthermore, the device can also meet the application requirements in a high humidity environment, so that it is not easily affected by wet weather or even heavy rain.



In addition, SE slewing drive utilizes hourglass worm drive technology and adopts a multi-gear contact hourglass worm structure with good impact resistance, which is suitable for more precise applications to achieve maximum gear torque and most stable rotation. A standard swing drive is equipped with an open housing and a single self-locking hourglass worm. When the power input is returned to neutral, the worm will lock the load in place without any external braking. This design makes the SE slewing drive an ideal solution for matching the relative rotation of two objects.



Performance Parameters of SE Series



Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182



Advantages



1. Use skeleton oil seal to avoid oil leakage efficiently

2. The mounting dimension designed could match many applications.

3. Easy maintenance

4. Adopt worm gear structure which has strong adhesion and driving torque
