High Accuracy Anti Dust Slew Drive Gearbox For Tower Concentrated Solar Power

High Accuracy Anti Dust Slew Drive Gearbox For Tower Concentrated Solar Power

  • High Accuracy Anti Dust Slew Drive Gearbox For Tower Concentrated Solar Power
  • High Accuracy Anti Dust Slew Drive Gearbox For Tower Concentrated Solar Power

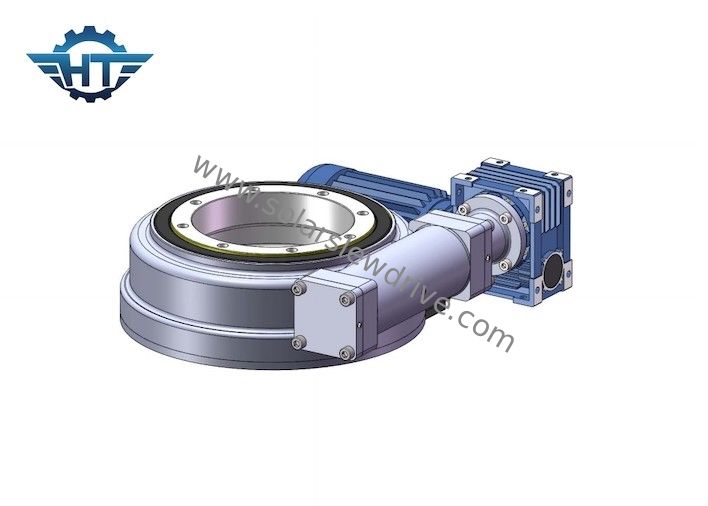

High Accuracy Anti Dust Slew Drive Gearbox For Tower Concentrated Solar Power
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 9 Inches Gear Ratio: 61:1
Efficiency: 40% Type: Horizontal
Application: Home PV Tracking Mounting OEM Service: Available
Place Of Origin: Changzhou, China Motor: 24V DC Motor
High Light:

High Accuracy Slew Drive Gearbox

,

Anti Dust Slew Drive Gearbox

,

Slew Drive Gearbox For Tower Concentrated

High Accuracy Anti Dust Slew Drive Gearbox For Tower Concentrated Solar Power



Slew Drive Gearbox Description



Heliostat drives are critical to tower power plant efficiency. In a tower CSP plant, tens of thousands of heliostats concentrate solar radiation on a heat absorber at the end of the heat absorption tower to collect high temperature and collect heat. In order to ensure continuous and stable collection of heat, the heliostat should track the position of the sun at all times, and move in the horizontal azimuth and pitch directions (dual-axis) through the transmission device.

Common transmission components of tower heliostats---Rotary reducer

At present, the most common transmission component in the heliostat system is the device called the rotary reducer as shown in the figure below. The rotary reducer is generally driven by a motor to drive the rotation of the heliostat in the biaxial direction. As a kind of precision machinery, the application of the rotary reducer in the solar thermal power generation industry needs to control the tracking accuracy within 1mrad. The double-enveloping worm gear has a large meshing area with the tooth surface, higher transmission precision, and strong impact resistance. Its low wear rate can ensure the accuracy and life under long-term use conditions, and is more suitable for the northwest region where the domestic CSP station is located. harsh environment.

In the tower power station, the driving components in the horizontal orientation mostly use the rotary reducer, but the pitch angle can choose the push rod or the rotary reducer.



Parameters of SE Series Slewing Drives



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Features



1. Hour-glass worm for competitive gear contact and life, and static load capacity
2. Multiple precision levels: variable backlash for different application needs

3. Standard sealing and grease fill
4. Great anti-water and anti-dust design, IP66

5. Self-locking, no need of break

6. Envelop worm
7. Key applications: PV Solar, Aerial Work Platforms, Truck Cranes, Marine Cranes
